Buildex DecKing ®

FIXING TIMBER TO METAL

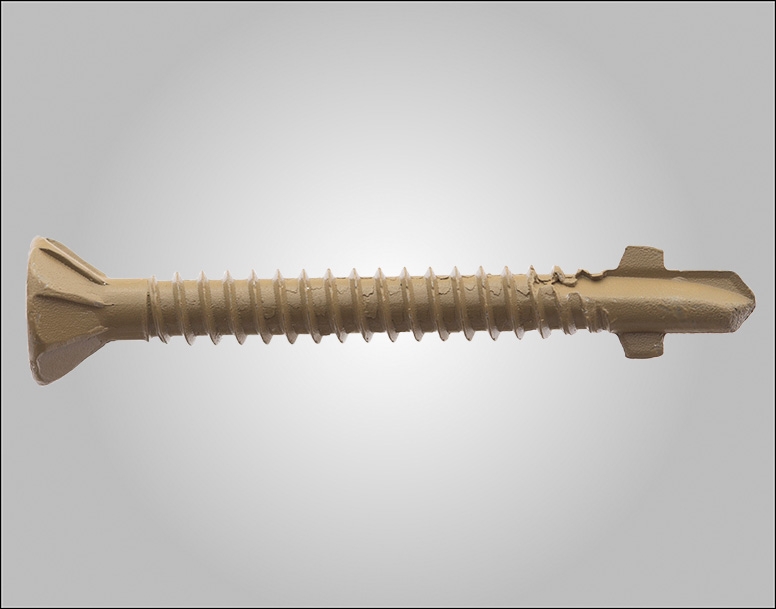

Wing Teks®

Application

The Buildex Wing Teks® range of fasteners is used for fixing timber floor, fences and composite boards to metal.

Features and Benefits

  • Fixes timber to metal without the timber rising to the top of the screw while the metal is being drilled
  • Features a flat head with reaming cutters in the underside to enable the head of the fastener to self-embed for a flush or recessed finish
  • Wing Teks® removes the need for predrilling the timber or composite board
  • Quick and easy to install
  • Teks® point for easy drilling into steel
  • High pull-out strength
Part NumberProductGaugeThreadLengthHead TypeCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
6-321-0041-5CC (While stocks last) Wing Teks® 8 18 35mm Counter Sunk Rib Head Climacoat® Unpainted 1000 4 pdf32102-PDS
6-321-0057-9CC (While stocks last) Wing Teks® 10 16 40mm Counter Sunk Rib Head Climacoat® Unpainted 500 4 pdf32106-PDS
6-321-0040-7CC (While stocks last) Wing Teks® 10 16 45mm Counter Sunk Rib Head Climacoat® Unpainted 500 4 pdf32101-PDS
6-321-0042-3CC (While stocks last) Wing Teks® 10 16 55mm Counter Sunk Rib Head Climacoat® Unpainted 1000 1 pdf32101-PDS
6-321-0058-7CC (While stocks last) Wing Teks® 14 20 65mm Counter Sunk Rib Head Climacoat® Unpainted 500 1 pdf32104-PDS

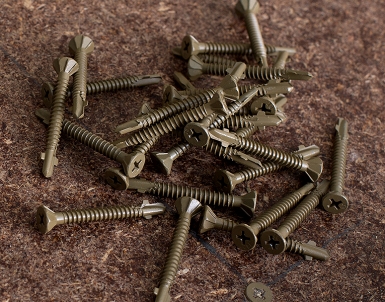

Dec-King® Steel

Application

Buildex® Dec-King® is a stainless steel self drilling decking screw for fastening timber decking boards (12mm-22mm thick) to steel joists between 1.2mm and 2.4mm thick and HRS 1.5mm to 3.0mm thick.

Features and Benefits

  • No need to pre-drill or counter sink
  • Wing design opens up the hole when drilling into timber
  • Small head provides a neat flush finish
  • 10g screw shank that won’t snap during installation
  • Stainless steel grade 304 for high corrosion protection
  • High pull-out strength

Part NumberProductGaugeThreadLengthHead TypeCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
6-392-0029-9 (While stocks last) Dec-King 10 16 47mm Counter Sunk Rib Head 304 Unpainted 500 2 pdf39211-PDS

RELATED PRODUCTS

Hex, Wafer, Smooth Top & Button Heads

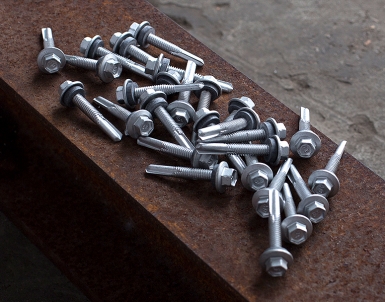

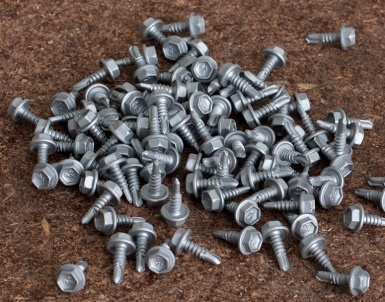

Hex Head Series 500 Teks®

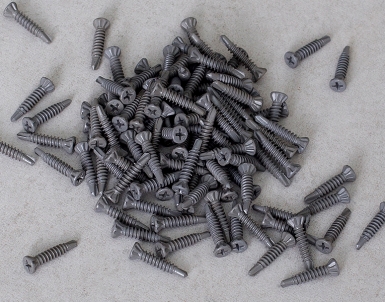

FibreTeks®
