Fixing to plasterboard

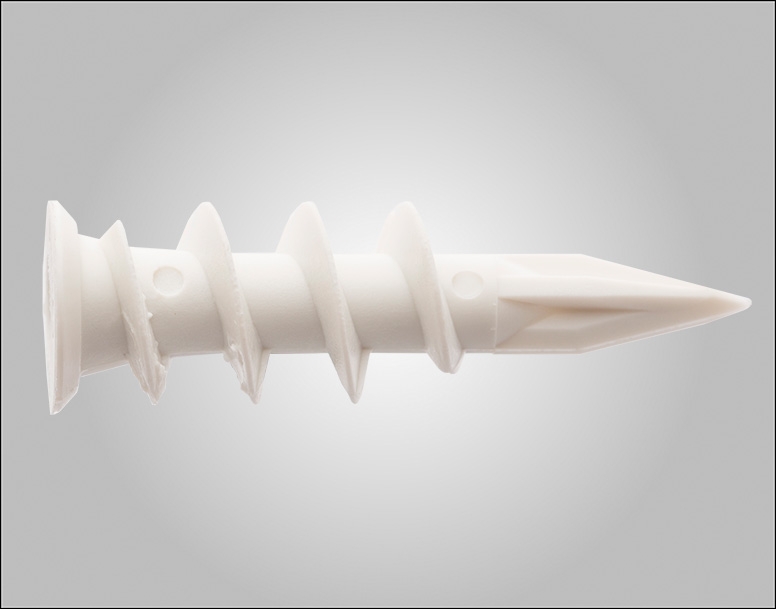

Buildex® Nylon Wall-mates®

Application

Buildex® Nylon Wall-mates® are self drilling plasterboard anchors for providing a secure fixing point to plasterboard. It is designed for medium only duty applications around the home e.g. bathroom and garage fixings, mirrors and clocks.

How to Use

1. Place a Wall-Mate® on the end of a Phillips head screwdriver.
2. Put point of Wall-Mate® where the anchor is to be installed, and lightly pierce the plasterboard facepaper. Using firm pressure, screw Wall-Mate® into the plasterboard until head is tight against the facepaper.
3. Choose a screw or hook suitable for the particular application. Attach the item to be fixed by driving the screw into the Wall-Mate®.

nylon wall mates how to

Part NumberProductPack QtyCarton Qty
1-996-0001-2 NYLON - Wall Mate 100 8

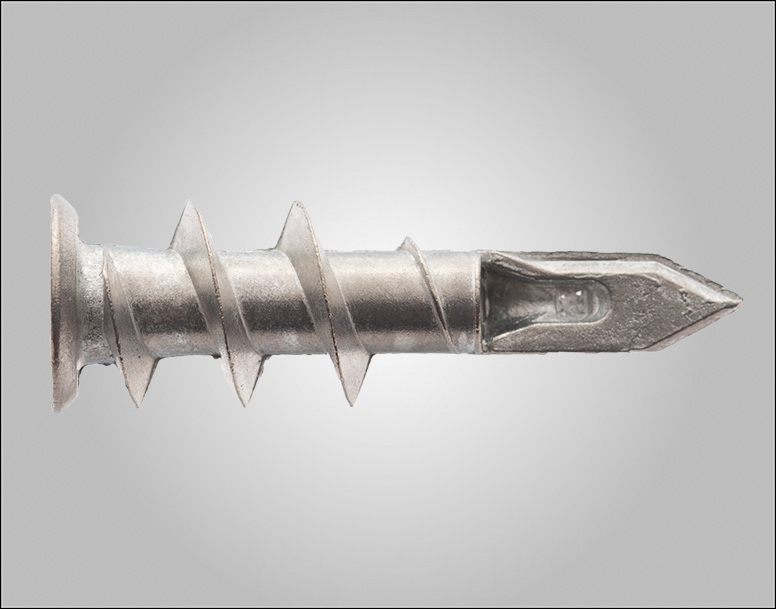

Buildex® Metal Wall-mate®

Application

Buildex® Metal Wall-mates® are self drilling plasterboard anchors for providing a secure fixing point to plasterboard. It is recommended for medium duty applications e.g. curtain rods, coat racks, paintings.

How to Use
1. Place a Wall-Mate® on the end of a Phillips head screwdriver.
2. Put point of Wall-Mate® where the anchor is to be installed, and lightly pierce the plasterboard facepaper. Using firm pressure, screw Wall-Mate® into the plasterboard until head is tight against the facepaper.
3. Choose a screw or hook suitable for the particular application. Attach the item to be fixed by driving the screw into the Wall-Mate®.




Part NumberProductPack QtyCarton Qty
1-999-0010-5 METAL- Wall Mate 100 8

Buildex® Super Wall-mates®

Application

Buildex® Super Wall-mates® Self drilling plasterboard anchors for providing a secure fixing point to plasterboard.  It has the greatest holding power and features a wing toggle that anchors itself behind the plasterboard, increasing the pullout strength.

Ideal for holding shelving, mirrors, curtainrods and coat racks. Recommended for ceiling applications such as lighting fixtures and hanging plants.

How to Use
1. Place on the end of a Phillips head screwdriver or cordless drill. Lightly piece the plasterboard and using firm pressure, screw into the plasterboard until head is tight against the facepaper.
2. Place the item to be fixed into place and insert the screw.
3. Turning the screw will engage the wing toggle.
4. Continue turning the screw until it is tight, this will ensure the toggle is firmly anchored behind the plasterboard.

super wm how to


Part NumberProductPack QtyCarton Qty
1-990-097557 SUPER- Wall Mate 100 12

Warning: Wall-Mate® anchors are only as strong as the plasterboard in which they are anchored to. The plasterboard will fail first, not the Wall-Mate®. Due to possible differences in applications and interpretation of results, purchasers must make their own evaluation of the product to determine the suitability of Wall-Mates for their intended use
