Fixing flooring and decking to timber

Dec-King®

Application

Buildex® Dec-King® is a stainless steel self drilling decking screw for fastening timber decking boards to softwood and treated pine joists.

Features and Benefits

  • No need to pre-drill or counter sink
  • Unique thread that minimises splitting of decking timber whilst retaining high pull-out values
  • Small head provides a neat flush finish
  • 12g screw shank that won’t snap during installation
  • Stainless steel grade 316 for high corrosion protection
  • High pull-out strength
Part NumberProductGaugeThreadLengthHead TypeCorrosion FinishPack QtyCarton QtyDatasheet link
6-312-0033-3 Dec-King M6 16 58mm Counter Sunk Rib Head 316 500 2 pdf31223-PDS

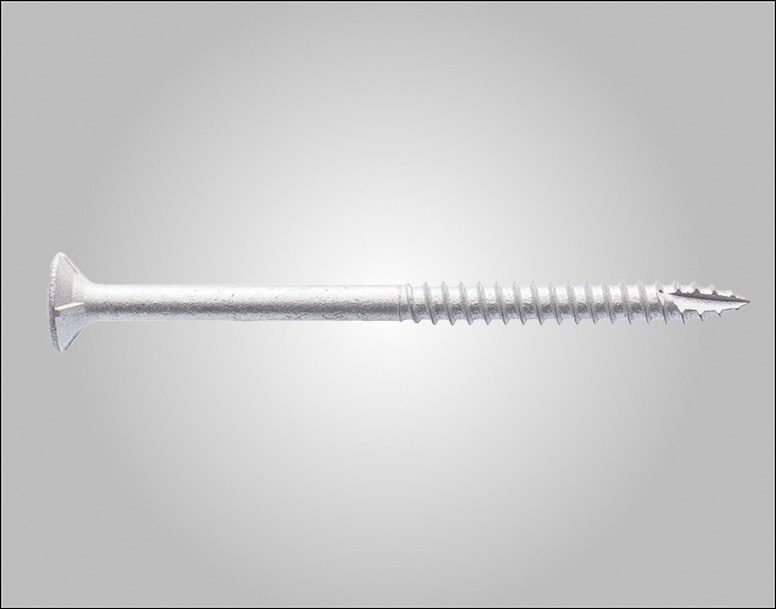

Bugle Head Batten Type 17

Application

Buildex 14-10 Bugle Head Batten Type 17 screws are designed for fixing heavy timbers where a flush finish is required. Common applications include; boardwalks, pergolas, furniture and fencing. It is also used for fixing roofing battens to timber rafters.

Features and Benefits

  • Type 17 point for easy application into timbers
  • High pull-out strength
  • Climaseal® 3 corrosion protection

Part NumberProductGaugeThreadLengthHead TypeCorrosion FinishPack QtyCarton QtyDatasheet link
6-031-0131-2MP Countersunk Rib Bugle Head 14 10 75mm Counter Sunk Rib Bugle Head Climaseal® 3 500 1 pdf03125-PDS
6-031-0160-5MP Countersunk Rib Bugle Head 14 10 100mm Counter Sunk Rib Bugle Head Climaseal® 3 250 1 pdf03125-PDS
6-031-0190-9MP Countersunk Rib Bugle Head 14 10 50mm Counter Sunk Rib Bugle Head Climaseal® 3 1000 1 pdf03125-PDS

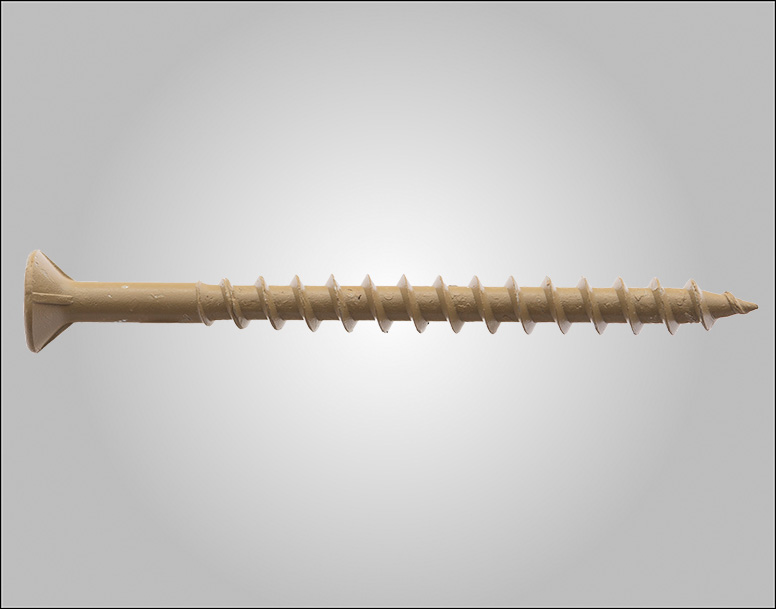

Bugle Head Treated Timber Type 17

Application

Buildex Treated Timber Screws with a Bugle Head are used mainly for flooring and decking applications.

Features and Benefits

  • Type 17 point for easy application into timbers

  • Climacoat® corrosion protection designed specifically for treated timbers


Part NumberProductGaugeThreadLengthHead TypeCorrosion FinishPack QtyCarton QtyDatasheet link
6-241-0101-6CC Countersunk Rib Bugle Head 10 25mm Counter Sunk Rib Bugle Head Climacoat® 1000 6 24127-PDS
6-241-0102-4CC Countersunk Rib Bugle Head 10 32mm Counter Sunk Rib Bugle Head Climacoat® 1000 4 24127-PDS
6-241-0107-5CC Countersunk Rib Bugle Head 10 35mm Counter Sunk Rib Bugle Head Climacoat® 1000 4 24127-PDS
6-241-0103-2CC Countersunk Rib Bugle Head 10 40mm Counter Sunk Rib Bugle Head Climacoat® 1000 3 24127-PDS
6-241-0104-1CC Countersunk Rib Bugle Head 10 45mm Counter Sunk Rib Bugle Head Climacoat® 1000 3 24127-PDS
6-241-0105-9CC Countersunk Rib Bugle Head 10 50mm Counter Sunk Rib Bugle Head Climacoat® 500 4 24127-PDS
6-241-0106-7CC Countersunk Rib Bugle Head 10 57mm Counter Sunk Rib Bugle Head Climacoat® 1000 1 24127-PDS
6-241-0110-2CC Countersunk Rib Bugle Head 10 8 65mm Counter Sunk Rib Bugle Head Climacoat® 1000 1 24127-PDS
6-241-0109-1CC Countersunk Rib Bugle Head 10 8 75mm Counter Sunk Rib Bugle Head Climacoat® 1000 1 24127-PDS
6-241-0120-7CC Countersunk Rib Bugle Head 10 8 100mm Counter Sunk Rib Bugle Head Climacoat® 500 1 24127-PDS
