Fixing mini corrugated cladding to timber and light metal

RippleZIPS®

Application

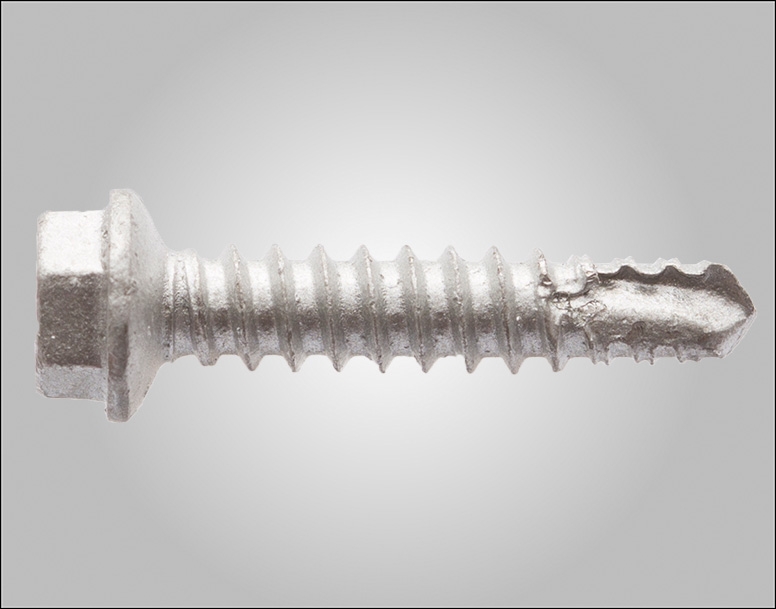

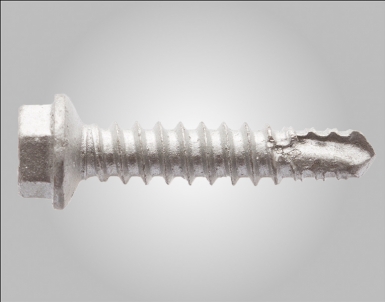

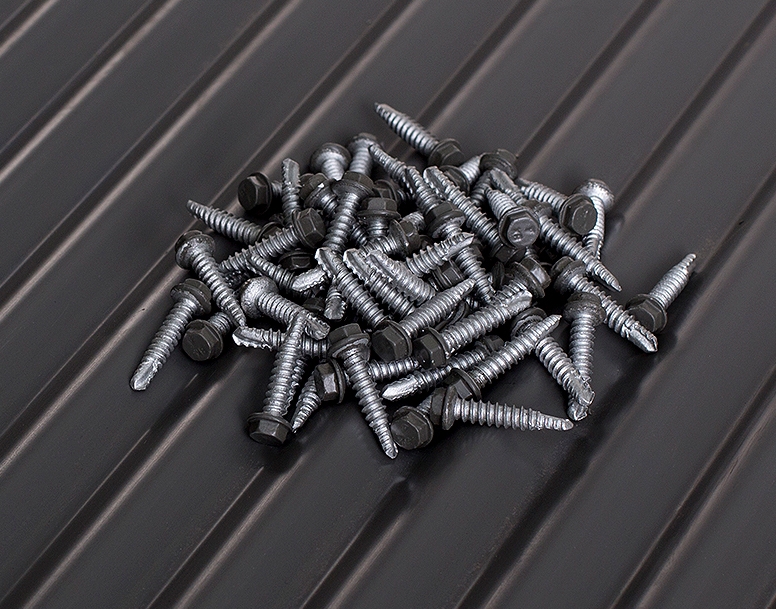

Buildex® RippleZIPS® are designed for valley fixing Mini Orb® or corrugated cladding to buildings, sheds and fencing. The Hex Ripple Hex Head has been designed to blend with the cladding and make a design statement. RippleZIPS® can be used in kitchens and other in-house fitouts where mini Orb® or corrugated sheet is used. Uses a 1/4" drive socket.

Features & Benefits

  • Zips® point for fast and easy drilling into both steel and timber
  • High pull-out strength
  • The unique Hexagon drive allows the fastener to be installed positively minimising the potential for sheet damage (sheet scratching)
  • Contoured under head profile has been specifically designed to provide a great appearance, matching the design of the sheeting whilst also sealing without the need for a washer
  • Climaseal® 4 corrosion protection
Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
1-031-9341-1TPC4 RippleZIPS® 10 16 25mm Hex Head No Seal  Climaseal® 4 Colormatch®* 100 5 pdf03145-PDS
6-031-3341-1C4 RippleZIPS® 10 16 25mm Hex Head No Seal  Climaseal® 4 Colormatch® 1000 4 pdf03145-PDS



*Available in limited colours including - Plain, Surfmist (OW), Shale Grey (GG), Dune (BI), Windspray (AG), Monument (GM), Woodland Gret (SG), Classic Cream (SC) and Basalt (BA).
