Fixing roof sheeting to metal - Cyclonic regions

Roof-lok® Cyclone Assemblies - Metal Teks®

Application

Buildex® Roof-lok® 14-10 and 14-14 Metal Tek Cyclonic Fasteners are designed for crest fixing both corrugated and square rib roof profiles into steel between 1.2mm & 5mm.

Features & Benefits

  • Ultimate Roof Holding Capability in Cyclonic Conditions – large contact area dramatically improves ability to hold down roof
  • Complies with Cyclonic Building Standards – Suitable for roofs designed for Category 5 Cyclones. Deemed to Comply Approval (m/192) from the Northern Territory Building Advisory Committee and has been tested and passed by James Cook University Cyclone Testing Station (Test Summary Sheet TS936 Revision A)
  • Climaseal® 5 and Climaseal® 4 corrosion protection available
  • Under-roof Corrosion Protection with Shankguard®* feature which prevents the scratching and scouring of the fastener shank that can happen during installation
  • Fast and Easy application

*Only available on some fastening solutions. Refer below product table.

Part NumberProductGaugeThreadLengthHead TypeCyclone AssemblyCorrosion FinishShankguardAvailable ColoursPack QtyCarton QtyDatasheet link
6-315-3082-9C4 Metal Teks® - Cyclonic 14 20 65mm Hex Head Roof-lok® Climaseal® 4 Colormatch® 250 1 pdf31174-PDS
6-315-3148-8C4 Metal Teks® - Cyclonic 14 10 53mm Hex Head Roof-lok® Climaseal® 4 Colormatch® 250 1 pdf31174-PDS
6-315-3149-5C4 Metal Teks® - Cyclonic 14 10 68mm Hex Head Roof-lok® Climaseal® 4 Colormatch® 250 1 pdf31174-PDS
6-315-3322-2C4 Metal Teks® - Cyclonic 14 10 78mm Hex Head Roof-lok® Climaseal® 4 Colormatch® 200 1 pdf31174-PDS
6-315-3335-9C4 Metal Teks® - Cyclonic 14 10 95mm Hex Head Roof-lok® Climaseal® 4 Colormatch® 200 1 pdf31174-PDS
6-315-5148-8C5 Metal Teks® - Cyclonic 14 10 53mm Hex Head Roof-lok® Climaseal® 5 Colormatch® 250 1 pdf31174-PDS
6-315-5149-5C5 Metal Teks® - Cyclonic 14 10 68mm Hex Head Roof-lok® Climaseal® 5 Colormatch® 250 1 pdf31174-PDS

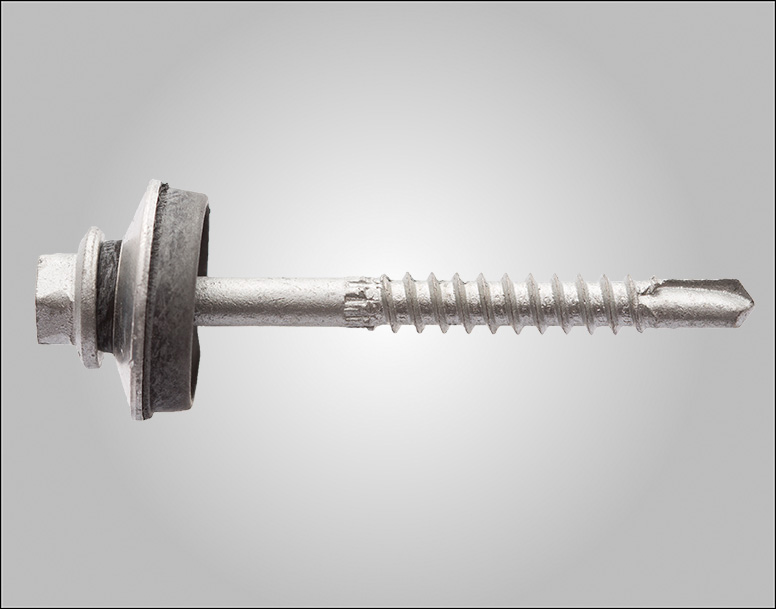

MultiSeal Cyclone Assemblies - Metal Teks®

Application

Buildex MultiSeal 14 gauge Metal Teks® screws are designed for ridge cap fixing and fixes into steel between 1mm & 5mm.

Features & Benefits

  • 25mm EPDM Aluminium Bonded Washer to help prevent water entry
  • Climaseal® 5 and Climaseal® 4 corrosion protection available
  • Under-roof Corrosion Protection with Shankguard feature which prevents the scratching and scouring of the fastener shank that can happen during installation
  • Fast & Easy Application into Steel

Part NumberProductGaugeThreadLengthHead TypeCyclone AssemblyCorrosion FinishShankguardAvailable ColoursPack QtyCarton QtyDatasheet link
6-310-3150-2C4 Metal Teks® - Cyclonic 14 10 53mm Hex Head Multiseal 25mm Climaseal® 4 Colormatch® 250 1 pdf31174-PDS
6-310-3167-1C4 Metal Teks® - Cyclonic 14 10 68mm Hex Head Multiseal 25mm Climaseal® 4 Colormatch® 250 1 pdf31174-PDS
6-310-3341-8C4 Metal Teks® - Cyclonic 14 10 78mm Hex Head Multiseal 25mm Climaseal® 4 Colormatch® 250 1 pdf31174-PDS
6-310-3502-2C4 Metal Teks® - Cyclonic 14 10 95mm Hex Head Multiseal 25mm Climaseal® 4 Colormatch® 200 1 pdf31174-PDS
6-316-5148-2C5 Metal Teks® - Cyclonic 14 10 53mm Hex Head Multiseal 25mm Climaseal® 5 Colormatch® 250 1 pdf31174-PDS
6-316-5149-5C5 Metal Teks® - Cyclonic 14 10 68mm Hex Head Multiseal 25mm Climaseal® 5 Colormatch® 250 1 pdf31174-PDS

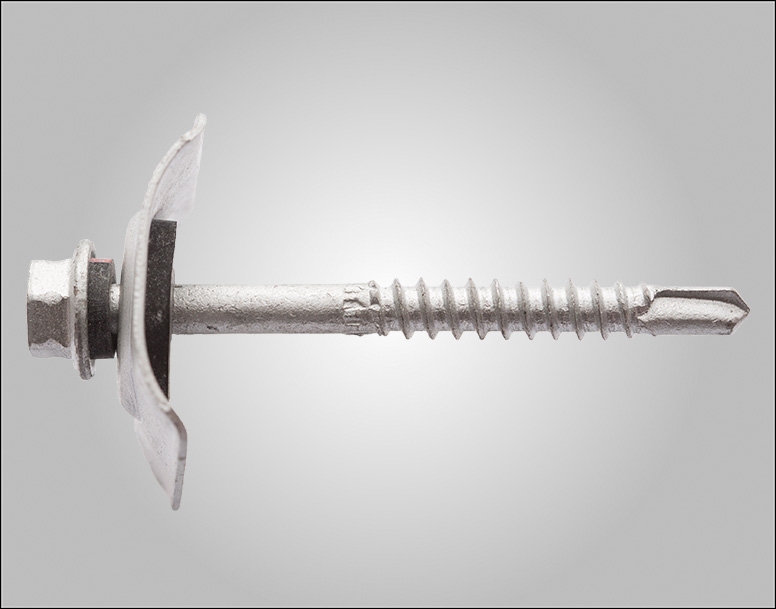

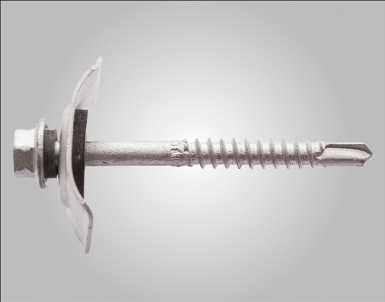

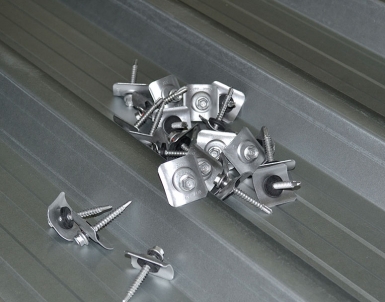

Hi-Rib Cyclone Assemblies - Metal Teks®

Application

Buildex Hi-Rib 14-10 Cyclonic Metal Teks® screws are designed for crest fixing both Hi-Rib profiles and fixes into steel between 1mm & 5mm.

Features & Benefits

  • Optimum roof holding performance in cyclonic conditions for Hi-Rib profiles
  • Climaseal® 4 corrosion protection available
  • Under-roof Corrosion Protection with Shankguard feature which prevents the scratching and scouring of the fastener shank that can happen during installation
  • Fast and easy application

Part NumberProductGaugeThreadLengthHead TypeCyclone AssemblyCorrosion FinishShankguardAvailable ColoursPack QtyCarton QtyDatasheet link
6-310-3108-2C4 Metal Teks® - Cyclonic 14 10 68mm Hex Head Hi-Rib Climaseal® 4 Colormatch® 250 1 pdf31174-PDS

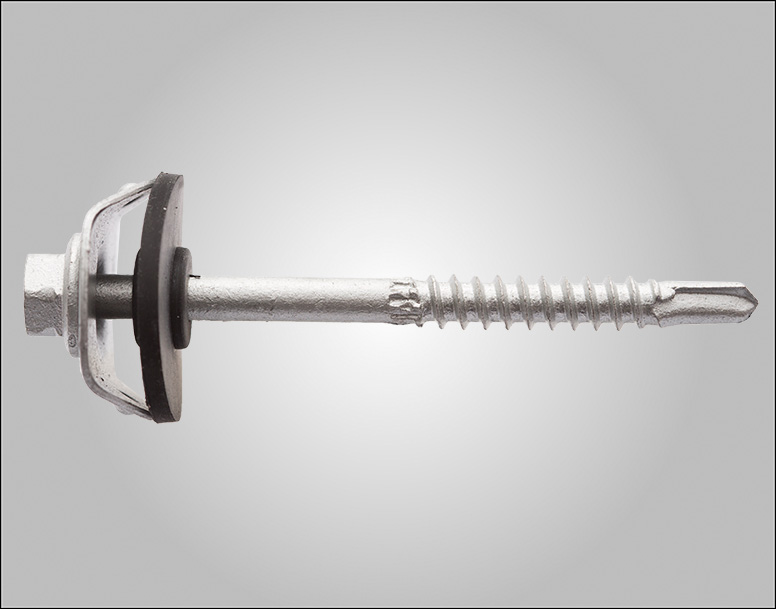

6-310-3351-2C4 Metal Teks® - Cyclonic 14 10 78mm Hex Head Hi-Rib Climaseal® 4 Colormatch® 200 1 pdf31174-PDS
6-310-3501-4C4 Metal Teks® - Cyclonic 14 10 95mm Hex Head Hi-Rib Climaseal® 4 Colormatch® 200 1 pdf31174-PDS
