Fixing stainless steel and aluminium sheeting to metal

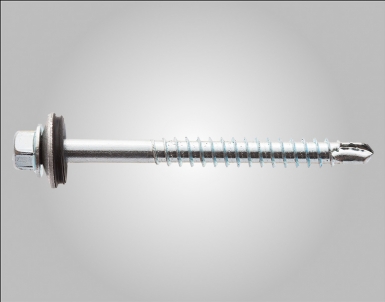

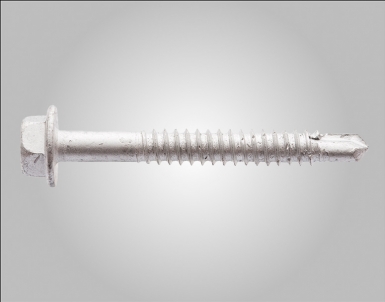

Stainless Steel Teks®

Application

Buildex® Stainless Steel Grade Teks® (Grade 304) are used for crest and pan fixing, recommended by BlueScope for Aluminium and Stainless roof sheets side cladding to steel or aluminium when protection from corrosive environments and or a complete system compatibility is crucial.

Features & Benefits

  • High Corrosion Resistance (grade 304)
  • High pull-out strength
Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
6-392-0002-2 Metal Teks® - Stainless Steel 10 16 25mm Wafer Head   304 Unpainted 500 1 pdf39209-PDS

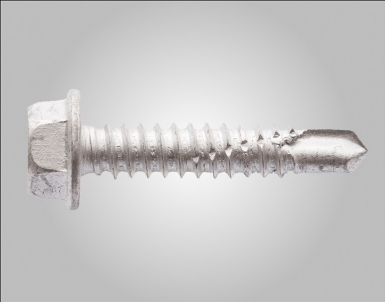

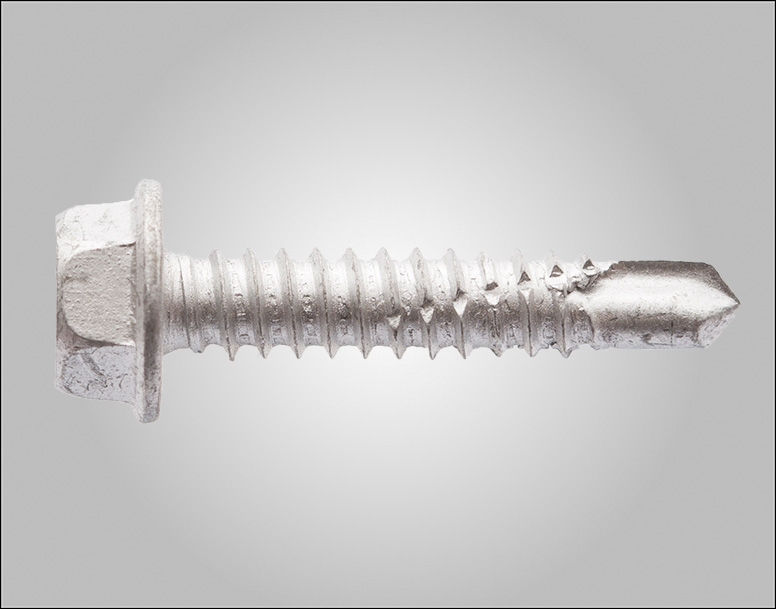

6-392-0003-3 Metal Teks® - Stainless Steel 12 14 25mm Hex Head No Seal 304 Unpainted 500 4 pdf39207-PDS
6-392-0007-7 Metal Teks® - Stainless Steel 14 14 31mm Hex Head No Seal 304 Unpainted 500 3 pdf39204-PDS

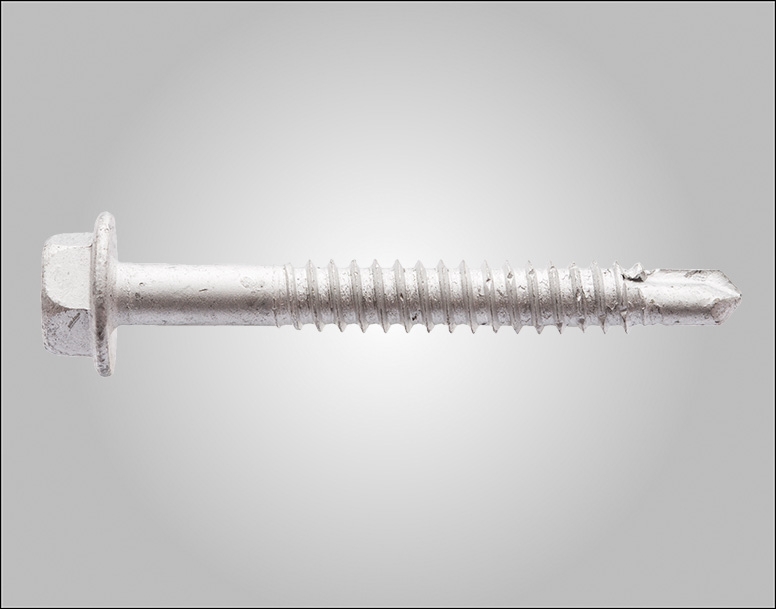

6-392-0008-8 Metal Teks® - Stainless Steel 14 14 52mm Hex Head No Seal 304 Unpainted 500 1 pdf39203-PDS

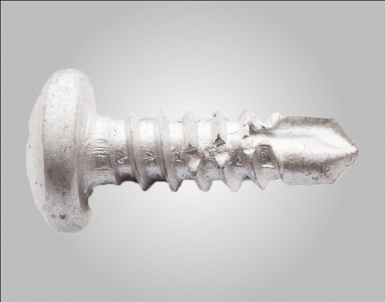

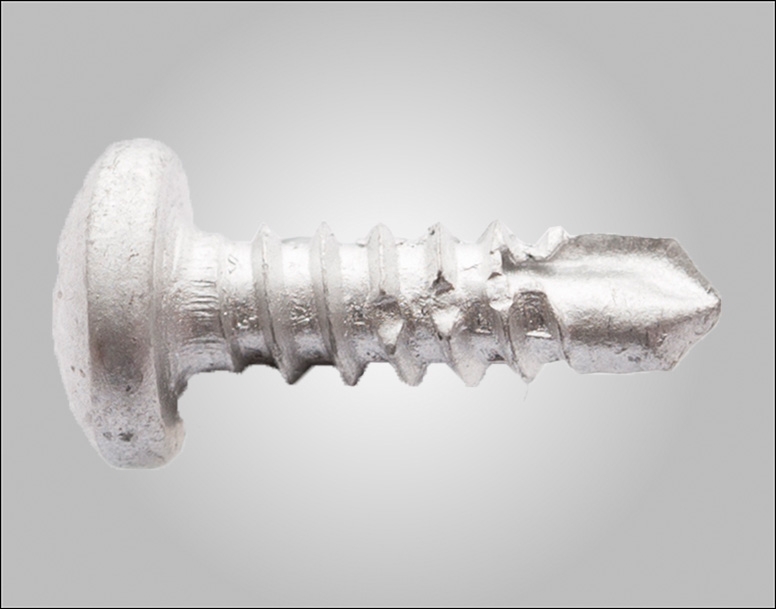

6-392-0015-5 Metal Teks® - Stainless Steel 8 18 13mm Pan Head   304 Unpainted 500 8 pdf39218-PDS

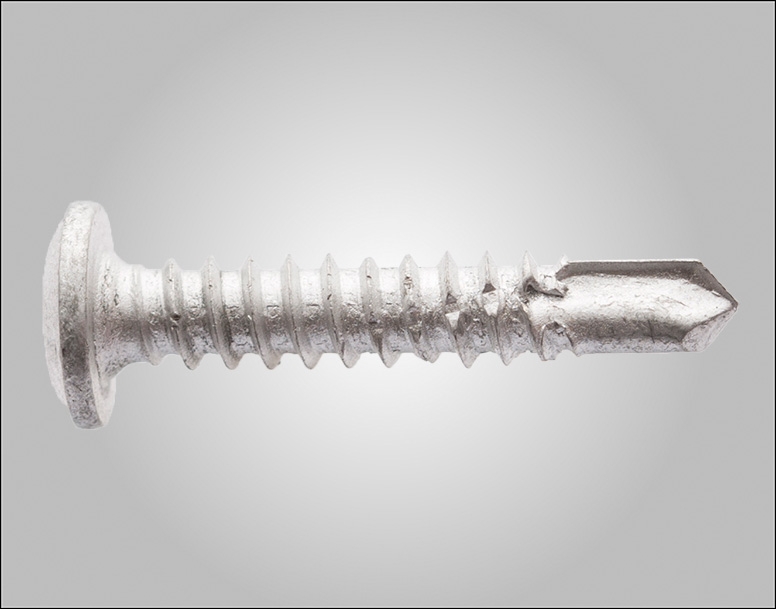

6-392-0016-6 Metal Teks® - Stainless Steel 8 18 19mm Pan Head   304 Unpainted 500 8 pdf39218-PDS

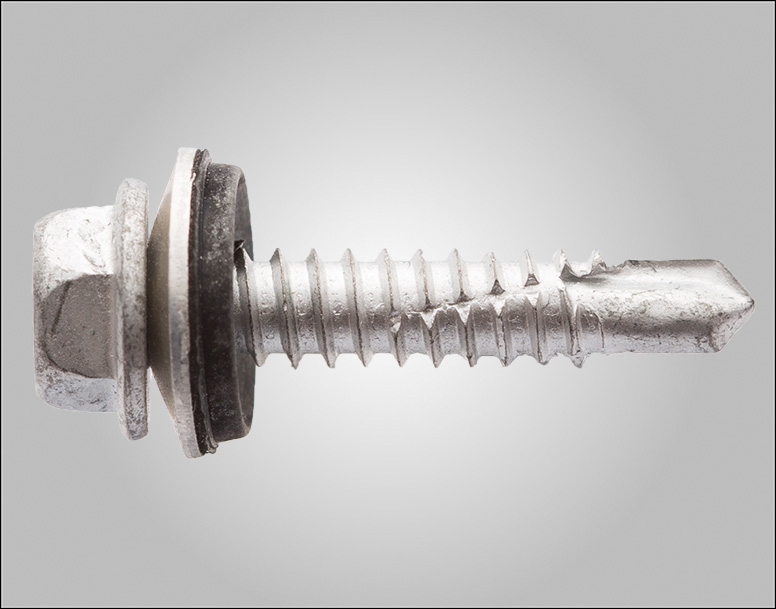

6-397-0103-3 Metal Teks® - Stainless Steel 12 14 25mm Hex Head 16mm Bonded Washer 304 Unpainted 500 3 pdf39207-PDS
6-397-0107-7 Metal Teks® - Stainless Steel 14 14 31mm Hex Head 16mm Bonded Washer 304 Unpainted 500 1 pdf39204-PDS
6-397-0108-8 Metal Teks® - Stainless Steel 14 14 52mm Hex Head 16mm Bonded Washer 304 Unpainted 500 1 pdf39203-PDS

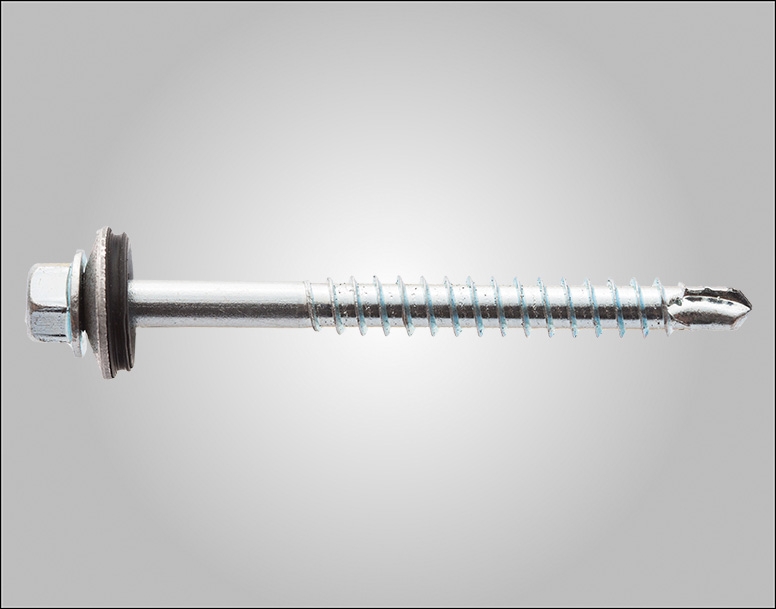

6-397-0109-9 Metal Teks® - Stainless Steel 14 14 70mm Hex Head 16mm Bonded Washer 304 Unpainted 500 1 pdf39203-PDS
6-397-0111-1 Metal Teks® - Stainless Steel 14 14 90mm Hex Head 16mm Bonded Washer 304 Unpainted 500 1 pdf39203-PDS

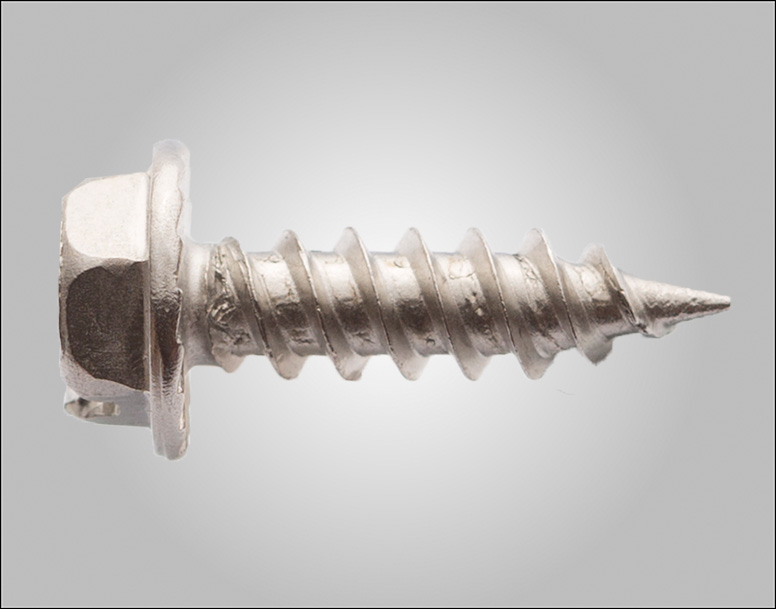

Stainless Steel Stitching Screws

Application

Buildex Stainless Stitch Screws are used for fixing overlaps of roof cladding when protection from corrosive environments and or a complete system compatibility is crucial. Available in 12-11 x 20mm needle point stitching screw (Grade 316).

Features & Benefits

  • High corrosion resistance
  • High pull-out strength

Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
6-112-0009-9 Stainless Steel Stitching Screws 8 15 15mm Hex Head No Seal 410 Unpainted 1000 8 pdf11001-PDS
6-117-0308-8 Stainless Steel Stitching Screws 12 11 20mm Hex Head 16mm Bonded Washer 316 Colormatch® 500 3
