Fixing Roof Sheeting to Timber and Light Metal

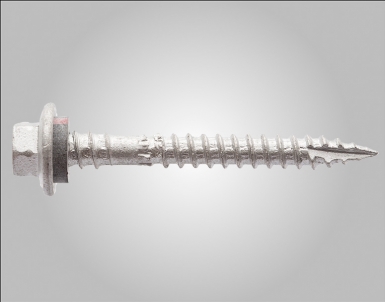

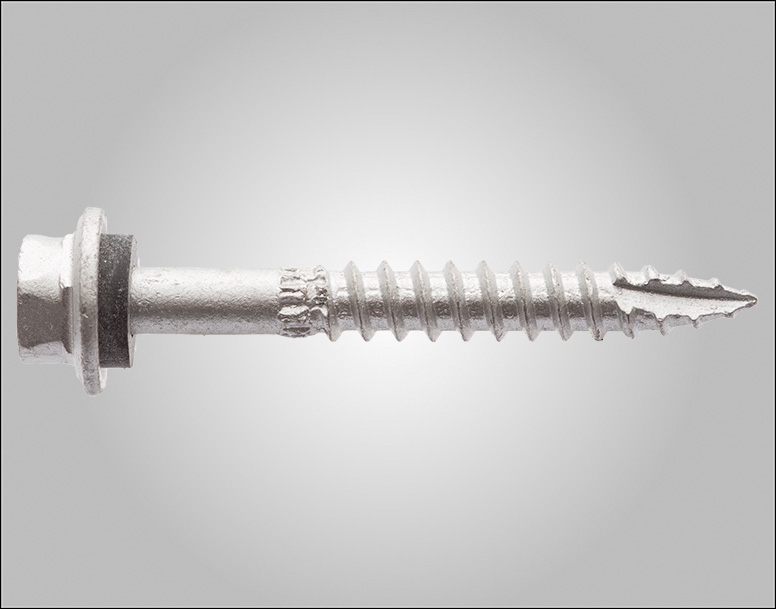

Type 17s – 12-11 Hex Head Higrip®

Application

Buildex® 12-11 Hex Head Higrip® Type 17 timber screws are suitable for fixing metal roofing into timber battens (both hardwood and softwood).

Features & Benefits

  • Fast and Easy application into both Hardwood and Softwood battens
  • Climaseal® 4 corrosion protection available
  • Under-roof Corrosion Protection with Shankguard® feature* which prevents the scratching and scouring of the fastener shank that can happen during installation.
  • Higrip® Feature grips to the roof sheeting to create a positive join preventing water entry and over drilling. It also stops the roof sheet moving down the shank when the roof is walked on.
Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishHi GripShankguardAvailable Colours

Pack

Qty

Carton QtyDatasheet link
6-030-3163-2C4 Type 17 12 11 50mm Hex Head With Seal Climaseal® 4 Colormatch® 1000 1 pdf03138-PDS
1-030-9163-2TPC4 Type 17 12 11 50mm Hex Head With Seal Climaseal® 4 Colormatch® 100 5 pdf03138-PDS
6-030-3164-8C4 Type 17 12 11 65mm Hex Head With Seal Climaseal® 4 Colormatch® 1000 1 pdf03138-PDS

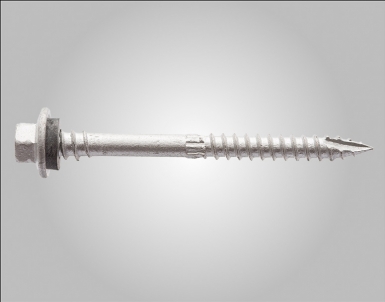

Type 17s – 14-10 Hex Head

Application

Buildex 14-10 Hex Head Type 17 timber screws are suitable for fixing metal roofing into timber battens (both hardwood and softwood).

Features & Benefits

  • Fast and Easy application into both Hardwood and Softwood battens
  • Climaseal® 5 and Climaseal® 4 corrosion protection available
  • Under-roof Corrosion Protection with Shankguard feature* which prevents the scratching and scouring of the fastener shank that can happen during installation.

Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishShankguardAvailable ColoursPack QtyCarton QtyDatasheet link
6-030-3007-1C4 Type 17 14 10 50mm Hex Head With Seal Climaseal® 4 Colormatch® 1000 1 pdf03216-PDS
1-030-9007-1TPC4 Type 17 14 10 50mm Hex Head With Seal Climaseal® 4 Colormatch®* 100 5 pdf03216-PDS
6-030-5007-1C5 Type 17 14 10 50mm Hex Head With Seal Climaseal® 5 Colormatch® 1000 1 pdf03216-PDS
6-030-3008-2C4 Type 17 14 10 65mm Hex Head With Seal Climaseal® 4 Colormatch® 1000 1 pdf03216-PDS
6-030-5008-2C5 Type 17 14 10 65mm Hex Head With Seal Climaseal® 5 Colormatch® 1000 1 pdf03216-PDS
6-030-3009-4C4 Type 17 14 10 75mm Hex Head With Seal Climaseal® 4   Colormatch® 500 1 pdf03216-PDS
6-030-3010-9C4 Type 17 14 10 90mm Hex Head With Seal Climaseal® 4   Colormatch® 500 1 pdf03216-PDS
