FIXing fibreglass sheeting to METAL

Buildex® Fibreglass Teks®

Application

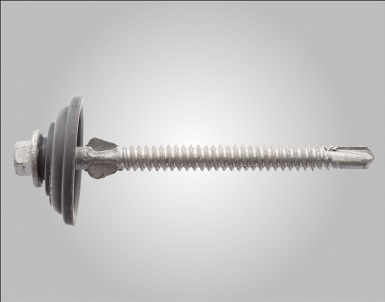

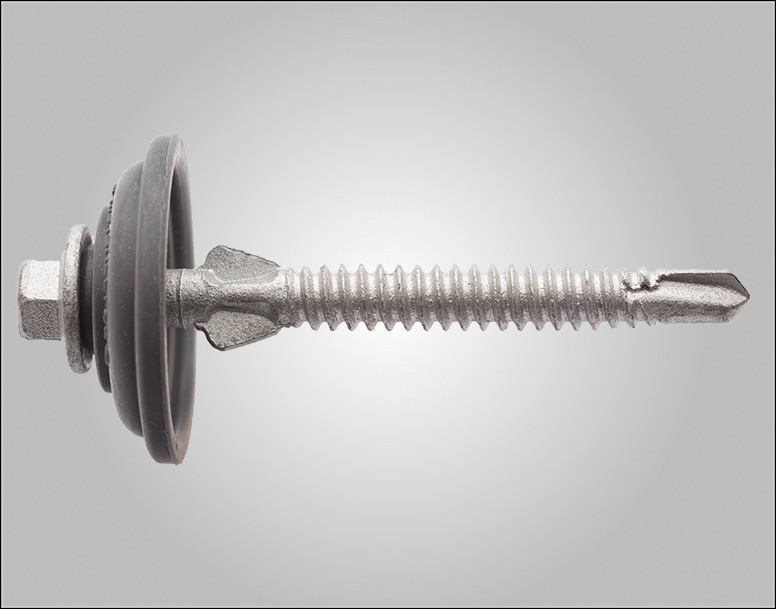

Buildex® 14-14 Fibreglass Teks® Roofing Screws are designed for crest fixing fibreglass roof sheets to steel purlins between 1.2mm and 5mm thick (2.4mm lapped battens). Typical applications are pergolas, outdoor entertainment areas and commercial building skylights.

Features & Benefits

  • Pre-drills its own expansion hole
  • Teks® drill point for high drilling performance into metal battens
  • High pull-out strength
  • 32mm EPDM washer with inner sealing ring to prevent water entry
  • Wing design drills an over sized hole into polycarbonate material which helps eliminate sheet buckling and water entry due to expansion in high temperature.
Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
6-310-0607-7CS Fibreglass Teks® 14 14 65mm Hex Head With 26mm EPDM Climaseal® 3 Unpainted 500 1 pdf31197-PDS
6-310-0626-6CS Fibreglass Teks® 14 14 83mm Hex Head With 26mm EPDM Climaseal® 3 Unpainted 250 1 pdf31197-PDS
