Steel frame housing - general applications

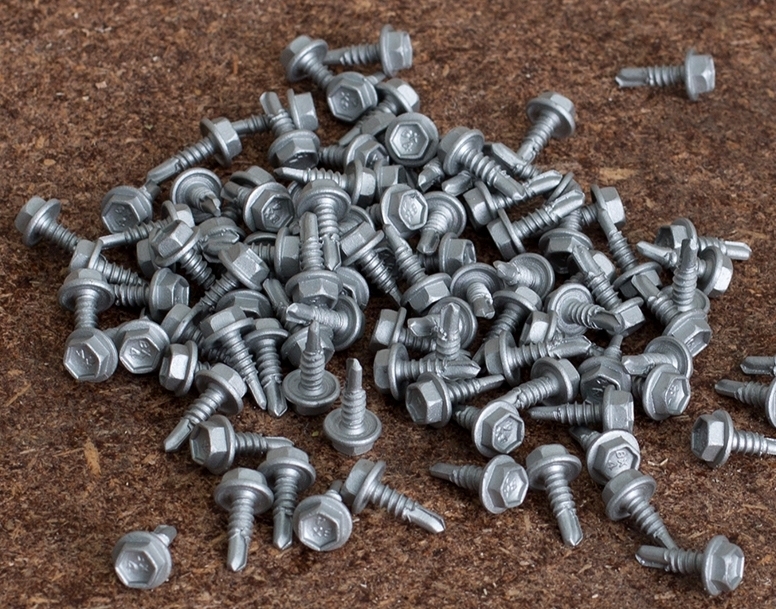

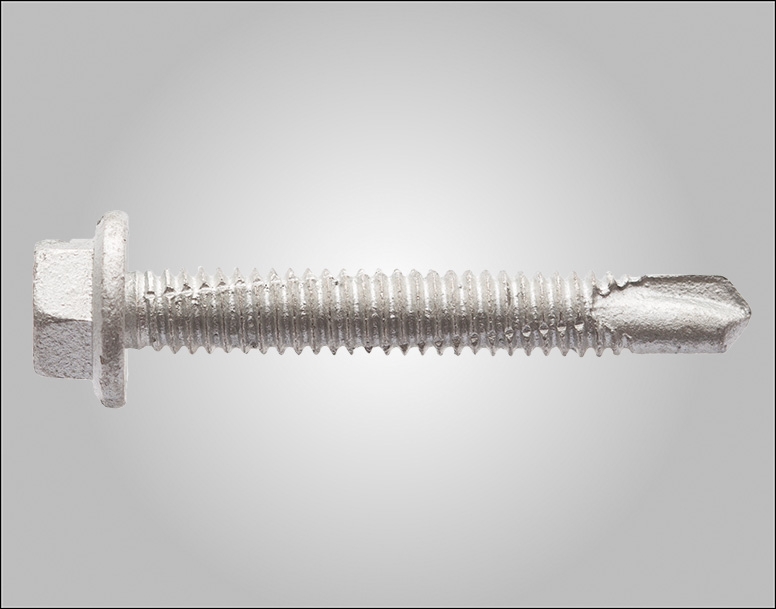

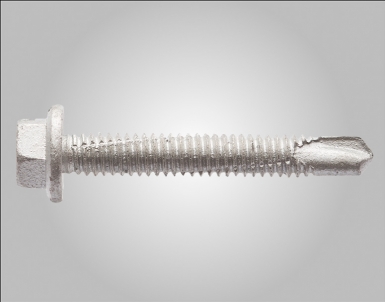

Hex Head Metal Teks® No Seal

Application

Buildex 14-20 x 45mm Hex Head Metal Teks® with no seal is primarily used for fixing bottom plates to steel. Buildex 10-16 x 16mm and 12 -14 x 20mm Hex Head Metal Teks® with no seal is primarily used for fixng steel frame walls together.

Features and Benefits

  • Teks® point for easy fixing into steel
  • High pull-out strength
  • Does not require a pre-punched hole
  • Climaseal® 4 corrosion protection

Part NumberProductGaugeThreadLengthHead TypeCorrosion FinishSealAvailable ColoursPack QtyCarton QtyDatasheet link
6-311-3403-6C4 Metal Teks® 14 20 45mm Hex Head Climaseal® 4 No Seal Colormatch® 1000 1 pdf31135-PDS
  Metal Teks® 10 16 16mm Hex Head Climaseal® 4 No Seal Unpainted   1
  Metal Teks® 12 14 20mm Hex Head Climaseal® 4 No Seal Unpainted   1

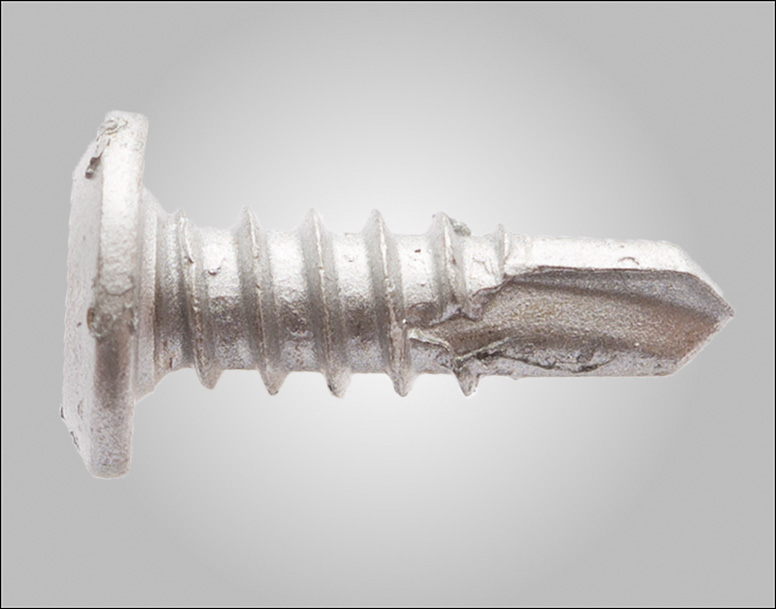

Wafer Head Teks®

Application

Buildex 10-16 x 16mm Wafer Head Teks® are used in Steel Frame Housing for fixing bracing straps and internal frame assembly.

Features and Benefits

  • Teks® point for easy fixing into steel
  • High pull-out strength
  • Does not require a pre-punched hole
  • Climaseal® 3 corrosion protection

Part NumberProductGaugeThreadLengthHead TypeCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
6-311-0150-6MP Wafer Teks® 10 16 16mm Wafer Head Climaseal® 3 Colormatch® 1000 4 pdf31140-PDS

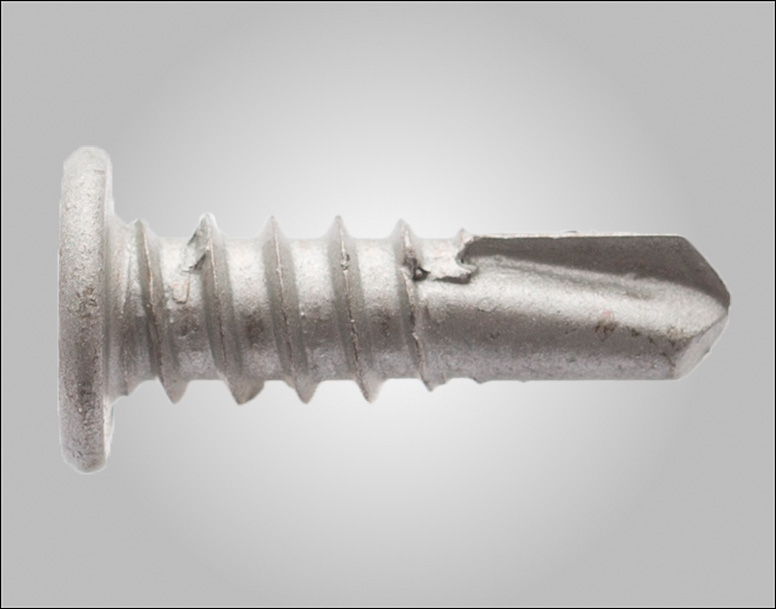

Smooth Top Teks®

Application

Buildex® 10-16 x 16mm Smooth Top Head Teks® are used in Steel Frame Housing for fixing bracing straps and internal frame assembly.

Features and Benefits

  • Teks® point for easy fixing into steel
  • High pull-out strength
  • Does not require a pre-punched hole
  • Climaseal® 3 corrosion protection

Part NumberProductGaugeThreadLengthHead TypeCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
6-311-0695-5MP Smooth Top Teks® 10 16 16mm Smooth Top Climaseal® 4 Unpainted 1000 4 pdf31195-PDS
