General applications - Fixing to metal

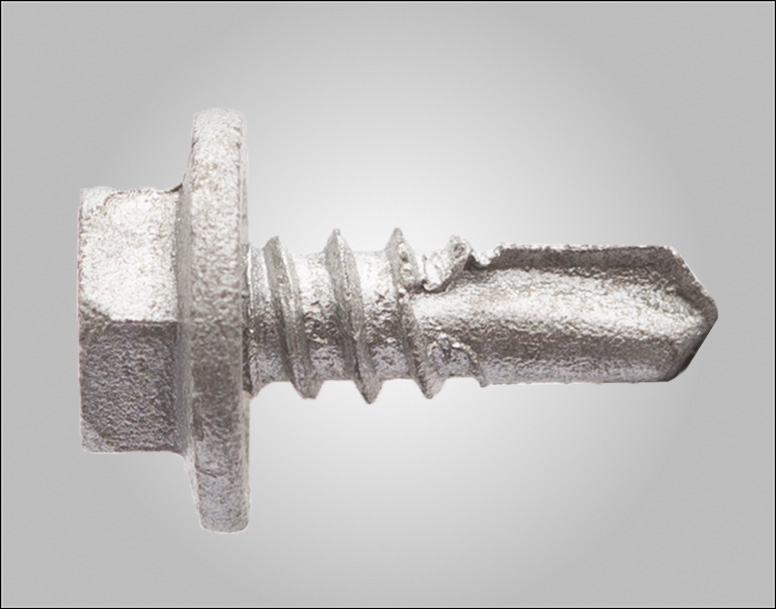

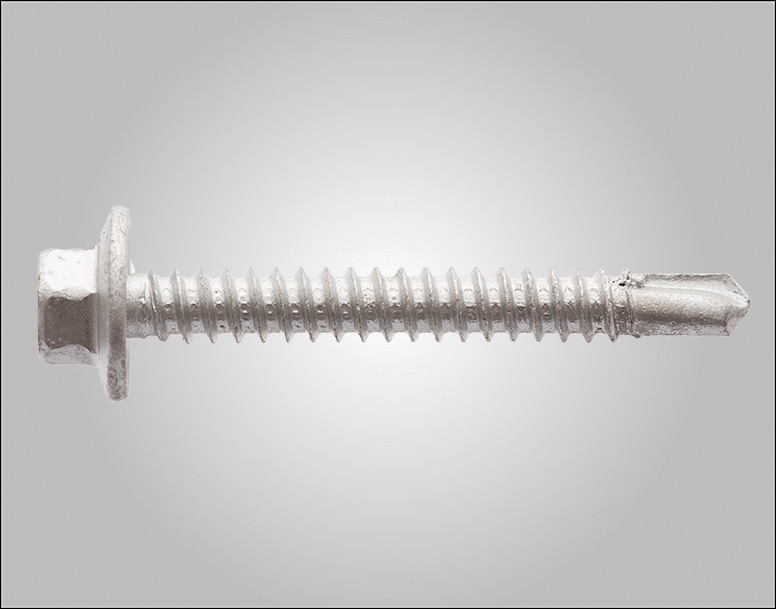

Hex Head Teks® No Seal

Application

Buildex® has a range of Hex Head Metal Teks® fasteners with no seal for general fixing into steel.

Common metal to metal applications include fencing, signs, fixings and trailers.

Features & Benefits

  • Teks® point for fast and easy application into steel
  • High pull-out strength
  • Climaseal® 4 and Climaseal® 3 corrosion protection available
Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
6-311-0008-1CS Metal Teks® 8 18 12mm Hex Head No Seal Climaseal® 3 Colormatch® 1000 4 pdf31105-PDS
6-311-3151-1C4 Metal Teks® 10 16 16mm Hex Head No Seal Climaseal® 4 Colormatch®  1000 4 pdf31166-PDS
1-311-9151-7TPC4 Metal Teks® 10 16 16mm Hex Head No Seal Climaseal® 4 Colormatch® 100 15 pdf31166-PDS
6-311-0062-2CS Metal Teks® 12 14 45mm Hex Head No Seal Climaseal® 3 Unpainted 1000 1 pdf31167-PDS

Shed Teks® Hex Head

Application

Buildex Shed Teks® is a general purpose fastener for fixing metal to metal. It is a 14 gauge screw with a 12 gauge head which outperforms 12 gauge screws in all strength properties.

14 - 10 x 25mm Shed Teks® will install into steel thicknesses between 1.2mm & 2.4mm x 22mm, while the 14-20 will install into steel thicknesses between 2.4mm lapped and 6mm hot rolled steel.

Features & Benefits

  • Teks® point for fast and easy application into steel
  • High pull-out strength
  • Climaseal® 3 corrosion protection available

Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishPack QtyCarton QtyDatasheet link
6-311-0575-5CS Shed Teks® 14 20 22mm Hex Head No Seal Climaseal® 3 500 3 pdf31294-PDS
6-311-0554-7MP Shed Teks® 14 10 25mm Hex Head No Seal Climaseal® 3 500  31219-pds

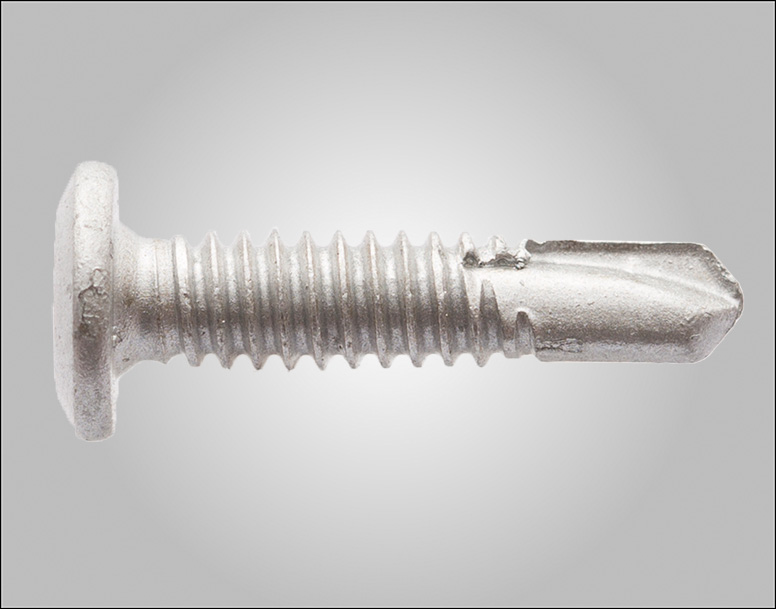

Wafer Head Teks®

Application

Buildex Wafer Head Teks® is a general all purpose metal to metal fixing product for jobs needing a low profile head. Common applications include; metal deck clips, electrical fittings, signs and sheet metal.

Features & Benefits

  • Low profile wafer head
  • Teks® point for fast and easy application into steel
  • High pull-out strength
  • Climaseal® 3 corrosion protection available
  • Zinc yellow finish to suit application
  • Teks® point for fast and easy application into steel up to 2.5mm.
  • High pull-out strength

Part NumberProductGaugeThreadLengthHead TypeCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
6-311-0021-3MP Wafer Teks® 10 24 16mm Wafer Head Climaseal® 3 Colormatch® 1000 4 pdf31147-PDS
6-311-0025-6MP Wafer Teks® 10 24 22mm Wafer Head Climaseal® 3 Colormatch® 1000 4 pdf31147-PDS
6-311-0150-6MP Wafer Teks® 10 16 16mm Wafer Head Climaseal® 3 Colormatch® 1000 4 pdf31140-PDS
6-311-0179-9MP Wafer Teks® 10 16 22mm Wafer Head Climaseal® 3 Colormatch® 1000 4 pdf31140-PDS
6-311-0312-9MP Wafer Teks® 10 24 40mm Wafer Head Climaseal® 3 Colormatch® 500 4 pdf31147-PDS
6-311-0535-7MP Wafer Teks® 10 16 30mm Wafer Head Climaseal® 3 Colormatch® 1000 3 pdf31140-PDS

Smooth Top Teks®

Application

Buildex 10 -16 Smooth Top Teks® screws are used for fixing wall bracing and internal fit outs. It can be used as an all purpose product for general fixing. Smooth Top can fix into steel up to 3.5mm.

Features & Benefits

  • Versatile all purpose fastener
  • Low profile head ideal for areas where discreet fixing is required
  • Teks® point for fast and easy application into steel
  • High pull-out strength
  • Climaseal® 3 corrosion protection available
  • Suitable for interior and exterior applications

Part NumberProductGaugeThreadLengthHead TypeCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
6-311-0695-5MP Smooth Top Teks® 10 16 16mm Smooth Top Climaseal® 3 Unpainted 1000 4 pdf31195-PDS

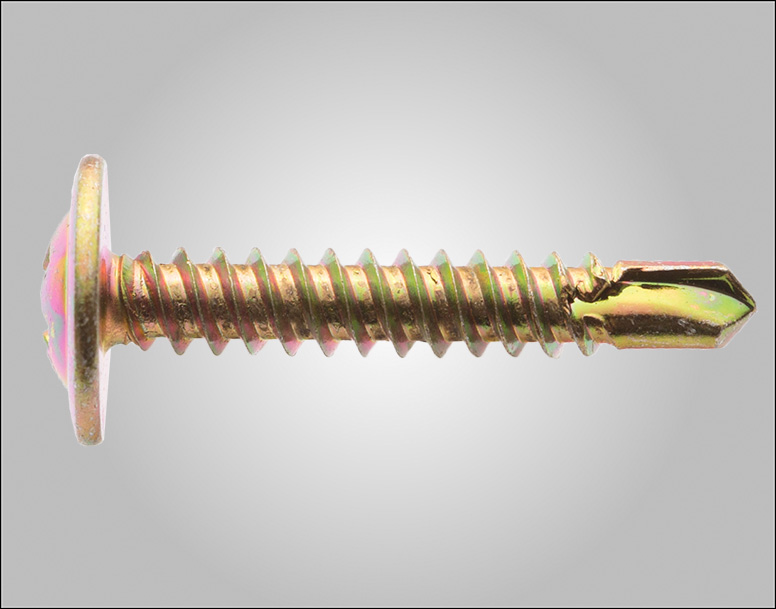

Button Head Teks®

Application

Buildex Button Head Teks® are ideal for jobs needing a broad flat head including; foil sarking and insulation panels, fascia bracket clips to rafters, conduit clips to steel. It can drill into steel between 0.75mm and 2.5mm.

Features & Benefits

  • Button head
  • Zink yellow finish
  • Teks® point for fast and easy application into steel
  • High pull-out strength

Part NumberProductGaugeThreadLengthHead TypeCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
6-311-0352-7 Button Head Teks® 8 18 12mm Button Head Zinc Yellow Unpainted 1000 8 31101-PDS
6-311-0376-9 Button Head Teks® 8 18 25mm Button Head Zinc Yellow Unpainted 1000 4 31101-PDS
6-311-0402-1 Button Head Teks® 8 18 16mm Button Head Zinc Yellow Unpainted 1000 6 31101-PDS
