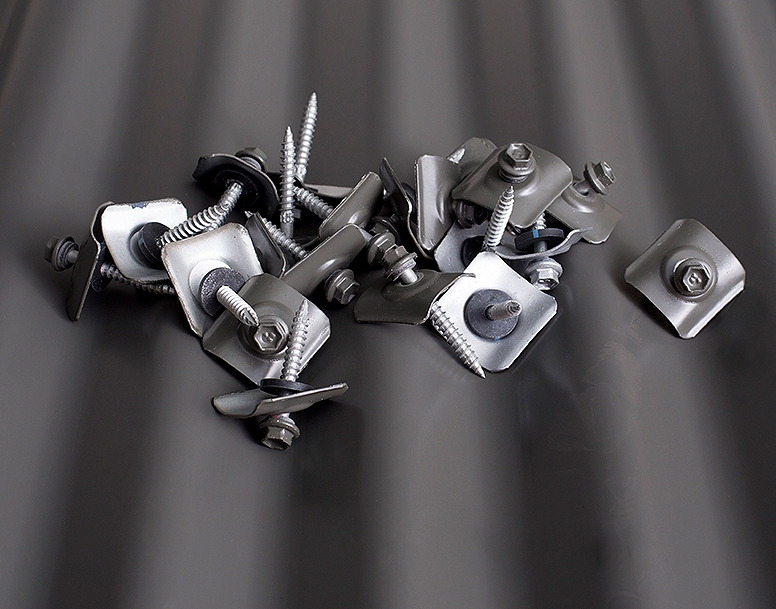

Cyclonic Assemblies fixing to Timber

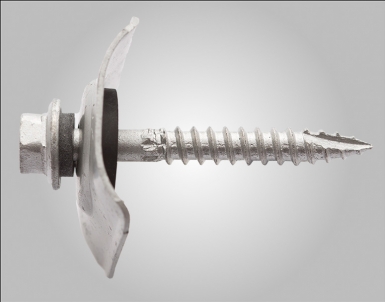

Roof-lok® Cyclonic Type 17

Application

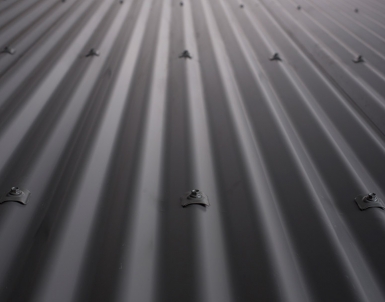

Buildex® Roof-lok® 14-10 Cyclonic Timber Screws are designed for crest fixing both corrugated and square rib roof profiles and fixes into timber battens (both hardwood and softwood).

Features & Benefits

  • Ultimate Roof Holding Capability in Cyclonic Conditions – large contact area dramatically improves ability to hold down roof
  • Complies with Cyclonic Building Standards – Suitable for roofs designed for Category 5 Cyclones. Deemed to Comply Approval (m/192) from the Northern Territory Building Advisory Committee and has been tested and passed by James Cook University Cyclone Testing Station (Test Summary Sheet TS936 Revision A)
  • Helps Prevent Water Entry with Large 19mm EPDM Seal
  • Climaseal® 5 and Climaseal® 4 corrosion protection available
  • Under-roof Corrosion Protection with Shankguard® feature* which prevents the scratching and scouring of the fastener shank that can happen during installation
  • Fast and Easy application into both Hardwood and Softwood battens

*Only available on some fastening solutions.  Refer below product table.

Part NumberProductGaugeThreadLengthHead TypeSealCyclone AssemblyCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
6-035-3008-2C4 Type 17 - Cyclonic 14 10 50mm Hex Head With Seal Roof-lok® Climaseal® 4 Colormatch® 250 1 pdf03216-PDS
6-035-5008-2C5 Type 17 - Cyclonic 14 10 50mm Hex Head With Seal Roof-lok® Climaseal® 5 Colormatch® 250 1 pdf03216-PDS
6-035-3009-1C4 Type 17 - Cyclonic 14 10 65mm Hex Head With Seal Roof-lok® Climaseal® 4 Colormatch® 250 1 pdf03216-PDS
6-035-5009-1C5 Type 17 - Cyclonic 14 10 65mm Hex Head With Seal Roof-lok® Climaseal® 5 Colormatch® 250 1 pdf03216-PDS
6-035-3013-6C4 Type 17 - Cyclonic 14 10 75mm Hex Head With Seal Roof-lok® Climaseal® 4 Colormatch® 200 1 pdf03216-PDS

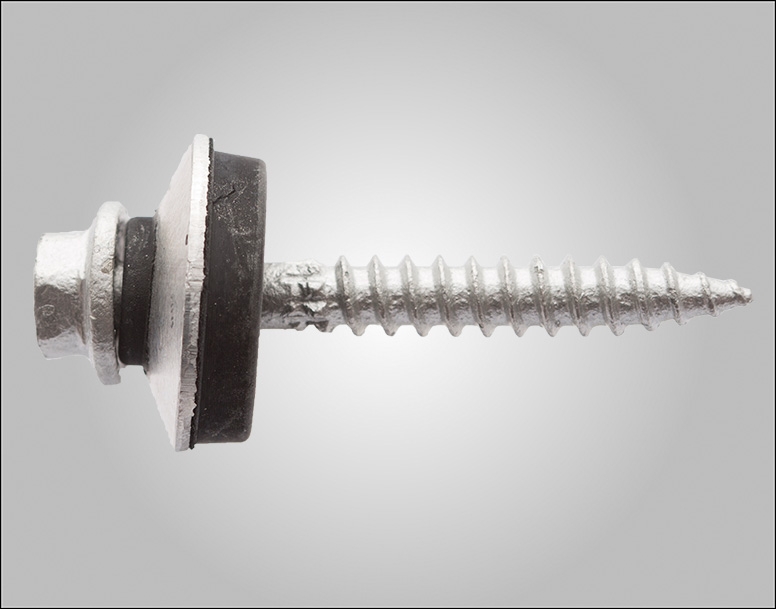

MultiSeal Cyclonic Type 17

Application

Buildex MultiSeal 14-10 Cyclonic Timber Screws are designed for Ridge Cap Fixing and fixes into timber battens (both hardwood and softwood).

Features & Benefits

  • 25mm EPDM Aluminium Bonded Washer to help prevent water entry
  • Climaseal® 5 and Climaseal® 4 corrosion protection available
  • Under-roof Corrosion Protection with Shankguard feature* which prevents the scratching and scouring of the fastener shank that can happen during installation
  • Fast & Easy Installation – patented Roof Zips® point design simplifies installation saving you time and money
* Only available on some fastening solutions.  Refer below product table.


Part NumberProductGaugeThreadLengthHead TypeSealCyclone AssemblyCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
6-030-3093-2C4 Type 17 - Cyclonic 14 10 50mm Hex Head With Seal MultiSeal 25mm Climaseal® 4 Colormatch® 250 1 pdf03216-PDS
6-036-5008-2C5 Type 17 - Cyclonic 14 10 50mm Hex Head With Seal MultiSeal 25mm Climaseal® 5 Colormatch® 250 1 pdf03216-PDS
6-030-3088-6C4 Type 17 - Cyclonic 14 10 65mm Hex Head With Seal MultiSeal 25mm Climaseal® 4 Colormatch® 250 1 pdf03216-PDS
6-036-5009-1C5 Type 17 - Cyclonic 14 10 65mm Hex Head With Seal MultiSeal 25mm Climaseal® 5 Colormatch® 250 1 pdf03216-PDS
6-030-3014-1C4 Type 17 - Cyclonic 14 10 75mm Hex Head With Seal MultiSeal 25mm Climaseal® 4 Colormatch® 250 1 pdf03216-PDS
6-030-3292-6C4 Type 17 - Cyclonic 14 10 90mm Hex Head With Seal MultSseal 25mm Climaseal® 4 Colormatch® 250 1 pdf03216-PDS

Hi-Rib Cyclonic Type 17

Application

Buildex Hi-Rib 14-10 Cyclonic Timber Screws are designed for crest fixing both Hi-Rib profiles and fixes into timber battens (both hardwood and softwood)

Features & Benefits

  • Optimum roof holding performance in Cyclonic conditions for high rib Profiles
  • Climaseal® 4 corrosion protection available
  • Under-roof Corrosion Protection with Shankguard feature which prevents the scratching and scouring of the fastener shank that can happen during installation
  • Fast and Easy application into both Hardwood and Softwood battens
* Only available on some fastening solutions.  Refer below product table.


Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishHi GripAvailable ColoursPack QtyCarton QtyDatasheet link
6-030-3058-9C4 Type 17 - Cyclonic 14 10 75mm Hex Head With Seal Climaseal® 4 Colormatch® 200 1 pdf03216-PDS
