FIX cladding to TIMBER

Buildex® Type 17

Application

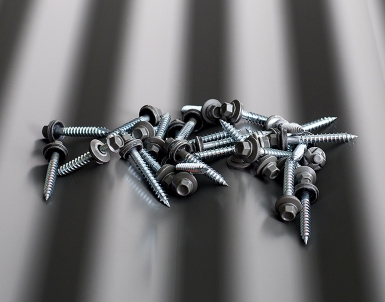

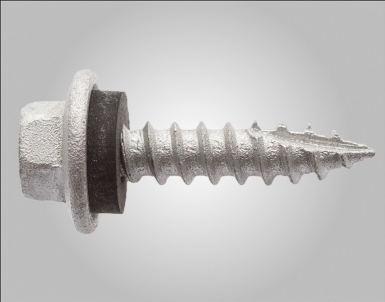

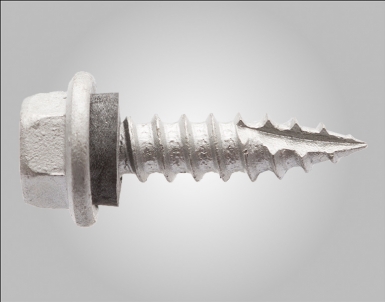

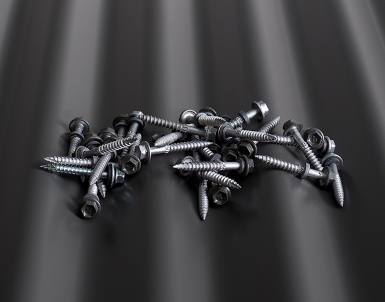

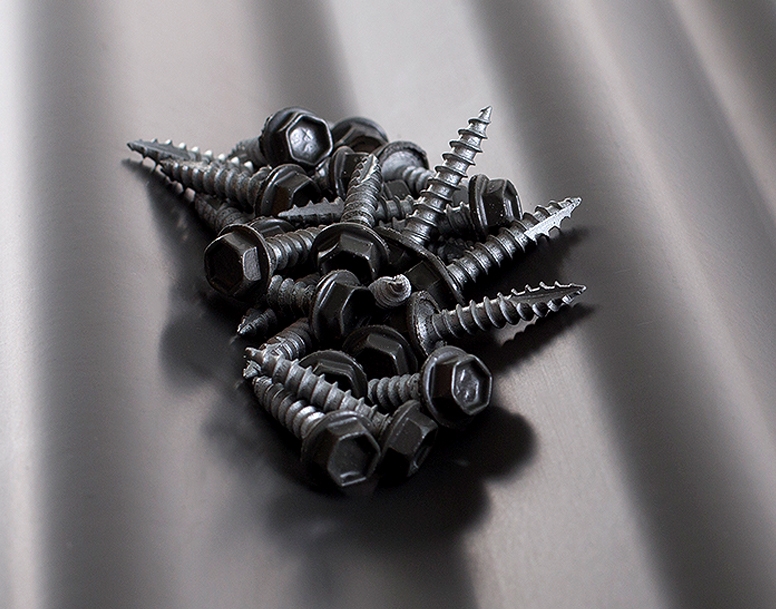

Buildex® Type 17 timber cladding screws are suitable for valley fixing metal cladding into timber battens (both hardwood and softwood). Available in 10 gauge, 12 gauge and 14 gauge.

Features & Benefits

  • Fast and Easy application into both Hardwood and Softwood battens
  • High pull-out strength
  • Climaseal® 5 and Climaseal® 4 corrosion protection available
Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
6-030-3001-1C4 Type 17 10 12 25mm Hex Head With Seal Climaseal® 4 Colormatch® 1000 3 pdf03230-PDS
1-030-9012-7TPC4 Type 17 12 11 25mm Hex Head With Seal Climaseal® 4 Colormatch® 100 2 pdf03140-PDS
6-030-3012-1C4 Type 17 12 11 25mm Hex Head With Seal Climaseal® 4 Colormatch® 500 4 pdf03140-PDS
1-030-9003-8TPC4 Type 17 14 10 25mm Hex Head With Seal Climaseal® 4 Colormatch® 100 5 pdf03139-PDS
6-030-3003-9C4 Type 17 14 10 25mm Hex Head With Seal Climaseal® 4 Colormatch® 500 3 pdf03139-PDS

Buildex® Designer Head ZIPS®

Application

Buildex® Designer Head ZIPS® have a low profile hex head that is ideal for use on cladding, where appearance is important. They are designed for valley fixing cladding profiles to steel purlins up to 3.5mm thick and timber battens.

Features and Benefits

  • Low profile hex head makes them ideal for use on cladding where appearance is important
  • High pull-out strength
  • Climaseal® 4 corrosion protection
  • Unique drill point that allows fastening to both timber and steel

Part NumberProductGaugeThreadLengthHead TypeSealFinishAvailable ColoursPackQtyCarton QtyDatasheet link
1-030-9326-6TPC4 Designer Head Zips® 10 16 25mm Hex Designer Head With Seal Climaseal® 4 Colormatch® 100 5 03223-PDS
6-030-3326-8C4 Designer Head Zips® 10 16 25mm Hex Designer Head With Seal Climaseal® 4 Colormatch® 1000 3 03223-PDS
6-031-3326-6C4 Designer Head Zips® 10 16 25mm Hex Designer Head No Seal Climaseal® 4 Colormatch® 1000 3 03223-PDS
