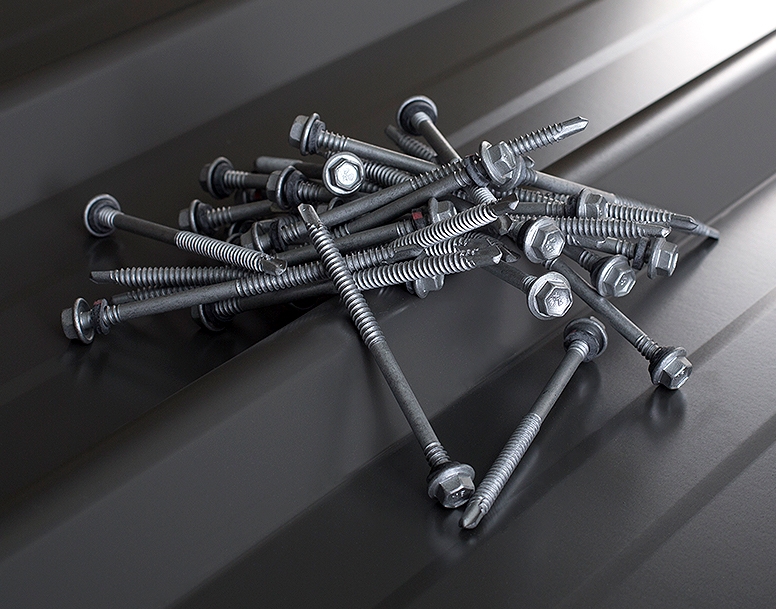

Fixing Insulated panels to METAL

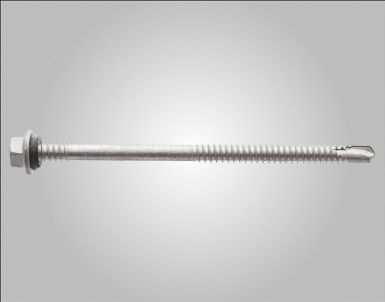

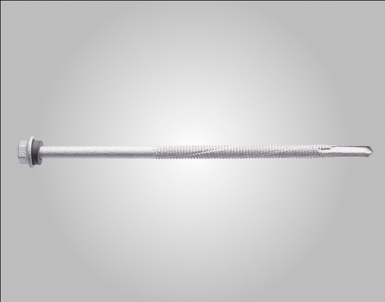

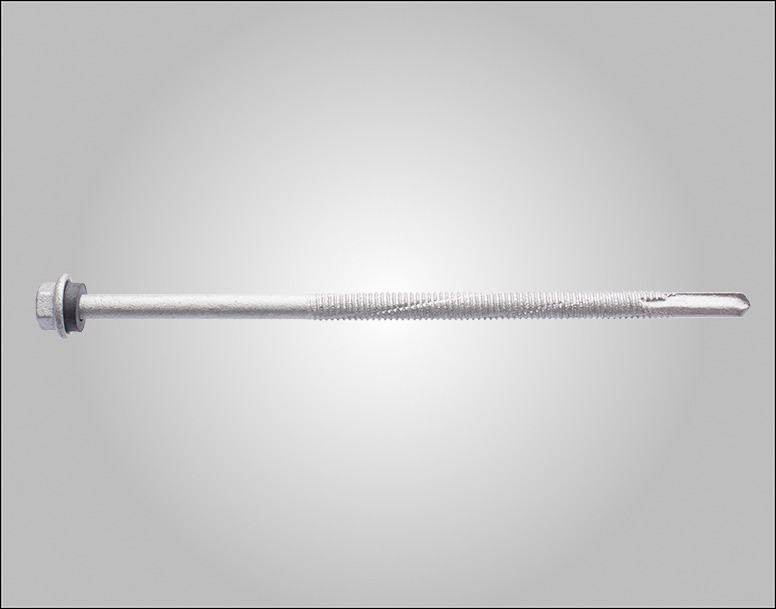

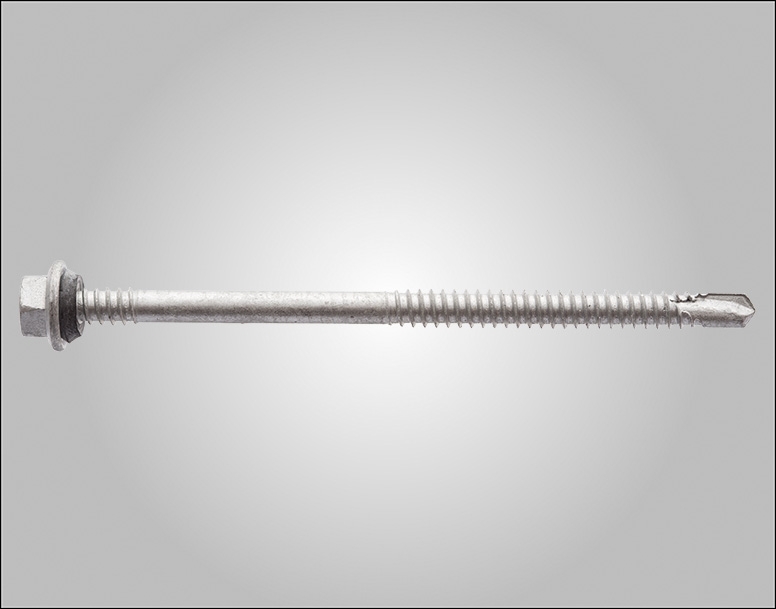

Metal Teks and Series 500

Application

Buildex® has a range of long 14 gauge Metal Teks® and Series 500 Teks® screws suitable for fixing insulated panel sheeting into metal. Fasteners are available with and without a seal.

Features and Benefits

  • Fast and Easy application into steel between 1mm and 5mm thick (Metal Teks®) or 3-12mm thick (Series 500 Teks®)
  • Climaseal® 4 corrosion protection available
  • Higrip® Feature grips to the roof sheeting to create a positive join preventing water entry and over drilling
  • Stops the roof sheet moving down the shank when the roof is walked on
Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishHi GripAvailable ColoursPack QtyCarton QtyDatasheet link
6-310-3664-4C4 Metal Teks® 14 14 110mm Hex Head With Seal Climaseal® 4 Colormatch® 250 1 pdf31203-PDS
6-310-3665-5C4 Metal Teks® 14 14 125mm Hex Head With Seal Climaseal® 4 Colormatch® 250 1 pdf31203-PDS
6-310-3666-6C4 Metal Teks® 14 14 150mm Hex Head With Seal Climaseal® 4 Colormatch® 250 1 pdf31203-PDS
6-310-3669-9C4 Metal Teks® 14 14 230mm Hex Head With Seal Climaseal® 4 Colormatch® 250 1 pdf31203-PDS
6-310-3706-6C4 Metal Teks® 14 14 205mm Hex Head With Seal Climaseal® 4 Colormatch® 250 1 pdf31203-PDS
6-310-3762-2C4 Metal Teks® 14 14 175mm Hex Head With Seal Climaseal® 4 Colormatch® 250 1 pdf31203-PDS
6-311-3664-4C4 Metal Teks® 14 14 110mm Hex Head No Seal Climaseal® 4 Unpainted 250 1 pdf31203-PDS
6-311-3665-5C4 Metal Teks® 14 14 125mm Hex Head No Seal Climaseal® 4 Unpainted 250 1 pdf31203-PDS
6-311-3666-6C4 Metal Teks® 14 14 150mm Hex Head No Seal Climaseal® 4 Unpainted 250 1 pdf31203-PDS
6-311-3669-9C4 Metal Teks® 14 14 230mm Hex Head No Seal Climaseal® 4 Unpainted 250 1 pdf31203-PDS
6-311-3706-6C4 Metal Teks® 14 14 205mm Hex Head No Seal Climaseal® 4 Unpainted 250 1 pdf31203-PDS
6-311-3762-2C4 Metal Teks® 14 14 175mm Hex Head No Seal Climaseal® 4 Unpainted 250 1 pdf31203-PDS
6-350-3028-8C4 Metal Teks® - Series 500 14 20 150mm Hex Head With Seal Climaseal® 4 Colormatch® 250 1 pdf35102-PDS
6-350-3029-9C4 Metal Teks® - Series 500 14 20 200mm Hex Head With Seal Climaseal® 4 Colormatch® 250 1 pdf35102-PDS
6-350-3049-9C4 Metal Teks® - Series 500 14 20 250mm Hex Head With Seal Climaseal® 4 Colormatch® 150 1 pdf35102-PDS
6-351-3028-8C4 Metal Teks® - Series 500 14 20 150mm Hex Head No Seal Climaseal® 4 Unpainted 250 1 pdf35102-PDS
6-351-3029-9C4 Metal Teks® - Series 500 14 20 200mm Hex Head No Seal Climaseal® 4 Unpainted 250 1 pdf35102-PDS
6-351-3038-8C4 Metal Teks® - Series 500 14 20 300mm Hex Head No Seal Climaseal® 4 Unpainted 250 1 pdf35102-PDS
6-351-3049-9C4 Metal Teks® - Series 500 14 20 250mm Hex Head No Seal Climaseal® 4 Unpainted 150 1 pdf35102-PDS

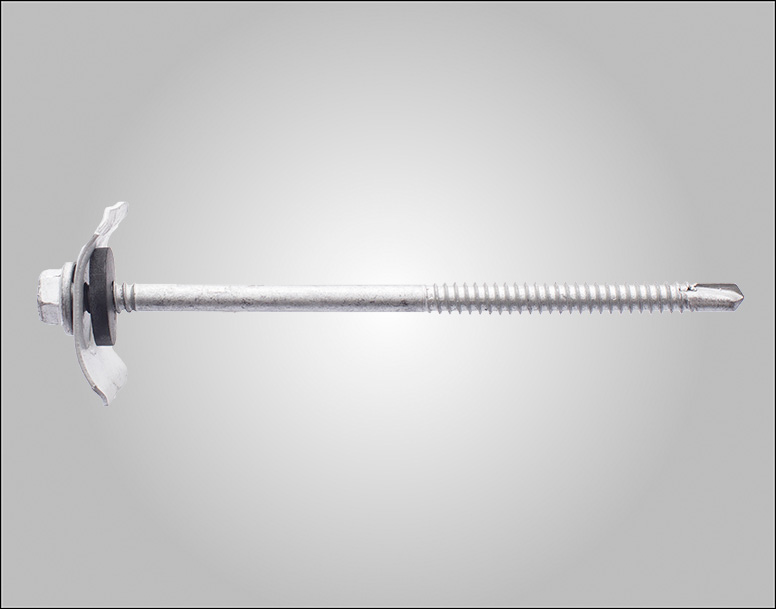

Roof-lok® Cyclone Assembly - Metal Teks® and Series 500 Teks®

Application

Buildex® has a range of long 14 gauge Metal Teks® & Series 500 fasteners with Roof-lok® Cyclone Assembly which are suitable for crest fixing insulated panels into metal.

Features and Benefits

  • Simplicity of one solution for both Corrugated and Square Rib Roof Profiles
  • Ultimate roof holding capability in cyclonic conditions – large contact area dramatically improves ability to hold down roof
  • Complies with Cyclonic Building Standards – Suitable for roofs designed for Category 5 Cyclones. Deemed to Comply Approval (m/192) from the Northern Territory Building Advisory Committee and has been tested and passed by James Cook University Cyclone Testing Station (Test Summary Sheet TS936 Revision A)
  • Helps Prevent Water Entry with Large 19mm EPDM Seal
  • Fast and Easy application into steel between 1mm and 5mm thick (Metal Teks®) or 3-12mm thick (Series 500 Teks®)
  • Climaseal® 4 corrosion protection available
  • Higrip® Feature grips to the roof sheeting to create a positive join preventing water entry and over drilling. Stops the roof sheet moving down the shank when the roof is walked on

Part NumberProductGaugeThreadLengthHead TypeSealCyclone AssemblyCorrosion FinishHi GripAvailable ColoursPack QtyCarton QtyDatasheet link
6-315-3666-6C4 Metal Teks® 14 10 230mm Hex Head With Seal Roof-lok® Climaseal® 4 Colormatch® 100 1 pdf31203-PDS
6-315-3699-9C4 Metal Teks® 14 14 150mm Hex Head With Seal Roof-lok® Climaseal® 4 Colormatch® 150 1 pdf31203-PDS
6-315-3706-6C4 Metal Teks® 14 14 205mm Hex Head With Seal Roof-lok® Climaseal® 4 Colormatch® 100 1 pdf31203-PDS
6-315-3762-2C4 Metal Teks® 14 14 175mm Hex Head With Seal Roof-lok® Climaseal® 4 Colormatch® 100 1 pdf31203-PDS
6-355-3028-8C4 Metal Teks® - Series 500 14 20 150mm Hex Head With Seal Roof-lok® Climaseal® 4 Colormatch® 100 1 pdf35102-PDS
6-355-3029-9C4 Metal Teks® - Series 500 14 20 300mm Hex Head With Seal Roof-lok® Climaseal® 4 Colormatch® 50 1 pdf35102-PDS
6-355-3038-8C4 Metal Teks® - Series 500 14 20 200mm Hex Head With Seal Roof-lok® Climaseal® 4 Colormatch® 100 1 pdf35102-PDS

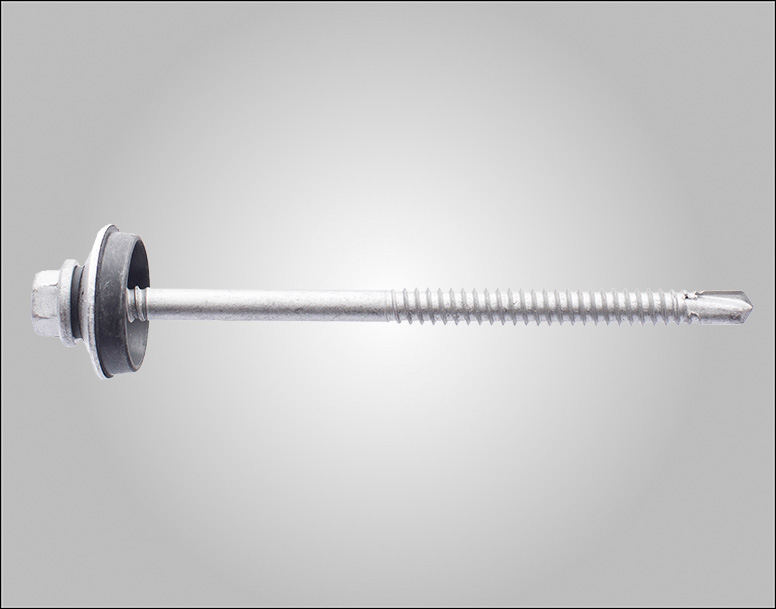

MultiSeal Cyclone Assembly - Metak Teks®  and Series 500 Teks®

Application

Buildex MultiSeal 14 gauge Metal Teks® screws are designed for ridge cap fixing and fixes into steel.

Features & Benefits

  • 25mm EPDM Aluminium Bonded Washer to help prevent water entry
  • Fast and Easy application into steel between 1mm and 5mm thick (Metal Teks®) or 3-12mm thick (Series 500 Teks®)
  • Climaseal® 4 corrosion protection available
  • Higrip® Feature grips to the roof sheeting to create a positive join preventing water entry and over drilling. Stops the roof sheet moving down the shank when the roof is walked on

Part NumberProductGaugeThreadLengthHead TypeSealCyclone AssemblyCorrosion FinishHi GripAvailable ColoursPack QtyCarton QtyDatasheet link
6-310-3714-4C4 Metal Teks® 14 14 205mm Hex Head With Seal MultiSeal 25mm Climaseal® 4 Colormatch® 150 1 pdf31203-PDS
6-310-3715-5C4 Metal Teks® 14 14 110mm Hex Head With Seal MultiSeal 25mm Climaseal® 4 Colormatch® 150 1 pdf31203-PDS
6-310-3716-6C4 Metal Teks® 14 14 125mm Hex Head With Seal MultiSeal 25mm Climaseal® 4 Colormatch® 150 1 pdf31203-PDS
6-310-3717-7C4 Metal Teks® 14 14 150mm Hex Head With Seal MultiSeal 25mm Climaseal® 4 Colormatch® 150 1 pdf31203-PDS
6-310-3719-9C4 Metal Teks® 14 10 230mm Hex Head With Seal MultiSeal 25mm Climaseal® 4 Colormatch® 150 1 pdf31203-PDS
6-310-3777-7C4 Metal Teks® 14 14 175mm Hex Head With Seal MultiSeal 25mm Climaseal® 4 Colormatch® 150 1 pdf31203-PDS
6-350-3033-3C4 Metal Teks® - Series 500 14 20 200mm Hex Head With Seal MultiSeal 25mm Climaseal® 4 Colormatch® 150 1 pdf35102-PDS
6-350-3031-1C4 Metal Teks® - Series 500 14 20 150mm Hex Head With Seal MultiSeal 25mm Climaseal® 4 Colormatch® 150 1 pdf35102-PDS
