General applications - Fixing to timber

Hex Head Type 17 No Seal – Full Thread

Application

The Buildex® range of Hex Head Type 17 fasteners with no seal (Full Thread) can be used for general fixing of timber and thin steel including; fencing, furniture, pergolas and side cladding.

Features and Benefits

  • Type 17 point for fast and easy application into timber
  • High pull-out strength
  • Climaseal® 4* and Climaseal® 3 corrosion protection available
Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishHi GripShankguardAvailable ColoursPack QtyCarton QtyDatasheet link
6-031-0005-1CS Type 17 Full Thread 10 12 30mm Hex Head No Seal Climaseal® 3     Unpainted 1000 3 pdf03230-PDS
6-031-3007-4C4 Type 17 Full Thread 14 10 25mm Hex Head No Seal Climaseal® 4     Colormatch® 500 3 pdf03139-PDS
6-031-3053-3C4 Type 17 Full Thread 10 12 25mm Hex Head No Seal Climaseal® 4     Colormatch® 1000 3 pdf03230-PDS
6-031-3097-4C4 Type 17 Full Thread 12 11 25mm Hex Head No Seal Climaseal® 4     Colormatch® 500 4 pdf03140-PDS
6-031-3273-1C4 Type 17 Full Thread 14 10 39mm Hex Head No Seal Climaseal® 4     Unpainted 1000 1 pdf03139-PDS

Hex Head Type 17 No Seal - Part Thread

Application

Buildex range of Hex Head Type 17 fasteners can be used for general fixing of timber and thin steel.

Features and Benefits

  • Type 17 point for fast and easy application into timber
  • High pull-out strength
  • Climaseal® 4* and Climaseal® 3* corrosion protection available

Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishHi GripShankguardAvailable ColoursPack QtyCarton QtyDatasheet link
6-031-0069-1CS Type 17 Part Thread 12 11 50mm Hex Head No Seal Climaseal® 3     Unpainted 1000 1 03144-PDS

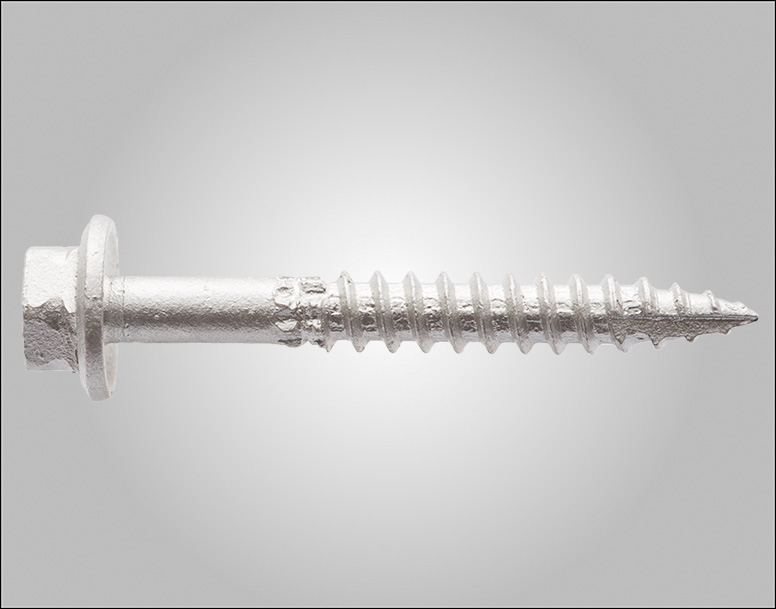

6-031-3008-2C4 Type 17 Part Thread 14 10 50mm Hex Head No Seal Climaseal® 4   Unpainted 1000 1 pdf03216-PDS
6-031-3009-1C4 Type 17 Part Thread 14 10 65mm Hex Head No Seal Climaseal® 4   Unpainted 1000 1 pdf03216-PDS
6-031-3013-6C4 Type 17 Part Thread 14 10 75mm Hex Head No Seal Climaseal® 4     Unpainted 500 1 pdf03216-PDS
6-031-3018-7C4 Type 17 Part Thread 14 10 90mm Hex Head No Seal Climaseal® 4     Unpainted 500 1 pdf03216-PDS
6-031-3019-5C4 Type 17 Part Thread 14 10 100mm Hex Head No Seal Climaseal® 4     Unpainted 500 1 pdf03216-PDS
6-031-3200-5C4 Type 17 Part Thread 14 10 150mm Hex Head No Seal Climaseal® 4   Unpainted 250 1 pdf03216-PDS
6-031-3248-9C4 Type 17 Part Thread 14 10 125mm Hex Head No Seal Climaseal® 4   Unpainted 250 1 pdf03216-PDS
6-031-3338-8C4 Type 17 Part Thread 14 10 175mm Hex Head No Seal Climaseal® 4   Unpainted 250 1 pdf03216-PDS
6-031-3352-2C4 Type 17 Part Thread 14 10 200mm Hex Head No Seal Climaseal® 4   Unpainted 250 1 pdf03216-PDS
6-031-5008-2C5 Type 17 Part Thread 14 10 50mm Hex Head No Seal Climaseal® 5   Unpainted 1000 1 pdf03216-PDS
6-031-5009-1C5 Type 17 Part Thread 14 10 65mm Hex Head No Seal Climaseal® 5   Unpainted 1000 1 pdf03216-PDS

 Bugle Head Batten Type 17

Application

Buildex 14-10 Bugle Head Batten Type 17 screws are designed for fixing heavy timbers where a flush finish is required. Common applications include; boardwalks, pergolas, furniture and fencing. It is also used for fixing roofing battens to timber rafters.

Features and Benefits

  • Type 17 point for easy application into timbers
  • High pull-out strength
  • Climaseal® 3 and Zinc Yellow corrosion protection available
Part NumberProductGaugeThreadLengthHead TypeCorrosion FinishPack QtyCarton QtyDatasheet link
6-031-0131-2 Bugle Batten Type 17 14 10 75mm Counter Sunk Rib Bugle Head Zinc Yellow 500 1 pdf03125-PDS
6-031-0131-2MP Bugle Batten Type 17 14 10 75mm Counter Sunk Rib Bugle Head Climaseal® 4 500 1 pdf03125-PDS

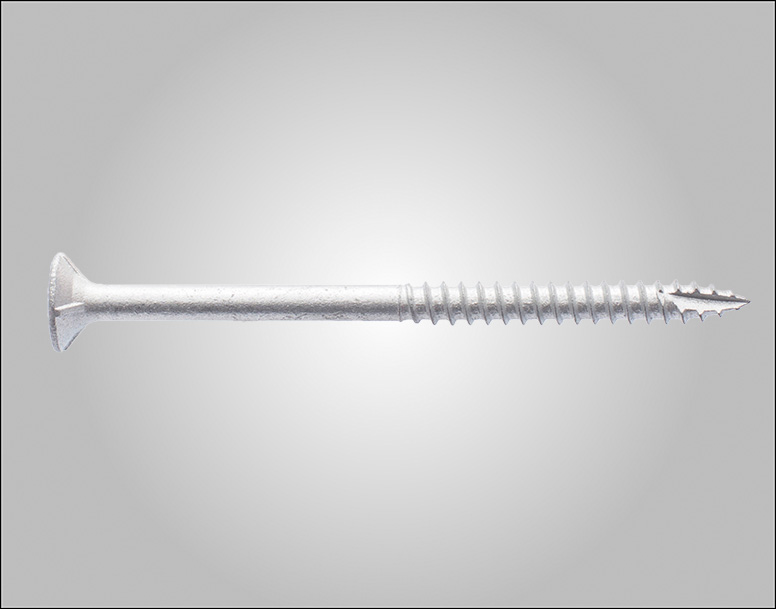

6-031-0160-5 Bugle Batten Type 17 14 10 100mm Counter Sunk Rib Bugle Head Zinc Yellow 250 1 pdf03125-PDS
6-031-0160-5MP Bugle Batten Type 17 14 10 100mm Counter Sunk Rib Bugle Head Climaseal® 4 250 1 pdf03125-PDS
6-031-0190-9MP Bugle Batten Type 17 14 10 50mm Counter Sunk Rib Bugle Head Climaseal® 4 1000 1 pdf03125-PDS

Wafer Head Type 17

Application

Buildex 10-12 Wafer Head Type 17s are designed for a variety of applications for fixing to timbers where a low profile head is required for; fencing, furniture, pergolas and secret fix clips to timber.

Features and Benefits

  • Wafer head where low profile is required
  • Type 17 point for easy application into timbers
  • High pull-out strength
  • Climaseal® 3 corrosion protection available

Part NumberProductGaugeThreadLengthHead TypeCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link

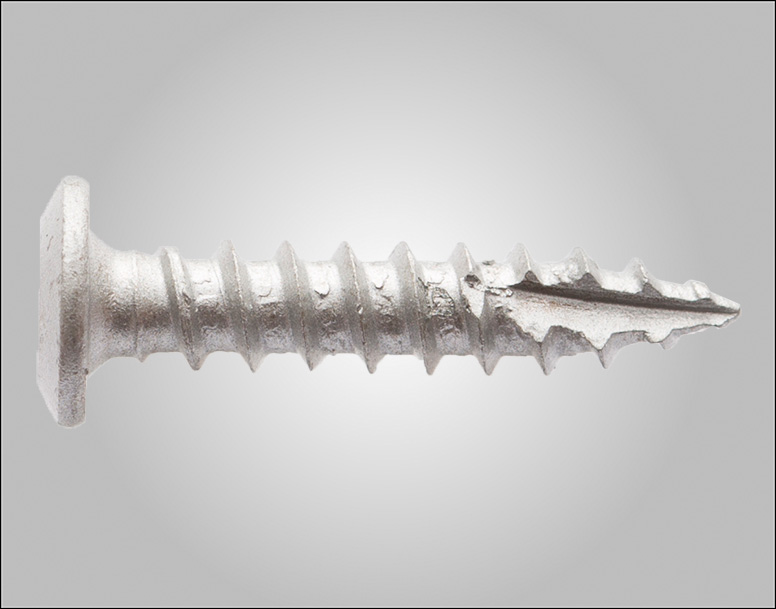

6-031-0068-3MP Wafer Head Type 17 10 12 25mm Wafer Head Climaseal® 3 Colormatch® 1000 4 pdf03107-PDS
