Buildex Metal Teks

FIXing Cladding TO METAL

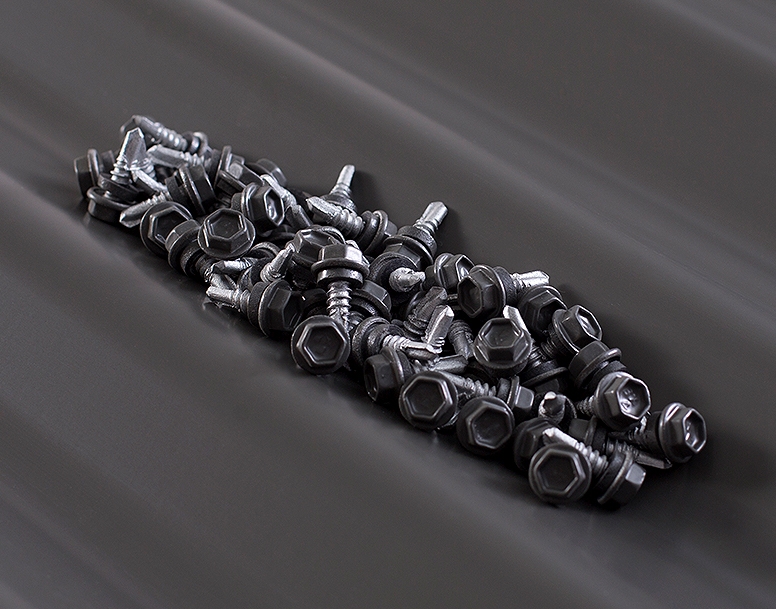

Metal Teks®

Application

Buildex® has a range of Metal Teks® cladding screws to suit various applications.

If a low profile head is desired, Buildex® Designer Head Zips® is ideal for cladding where appearance is important and fixes into steel up to 3mm thick.

Features and Benefits

  • Fast and Easy application into steel with Teks® point for steel
  • High pull-out strength
  • Climaseal® 5 and Climaseal® 4 corrosion protection available

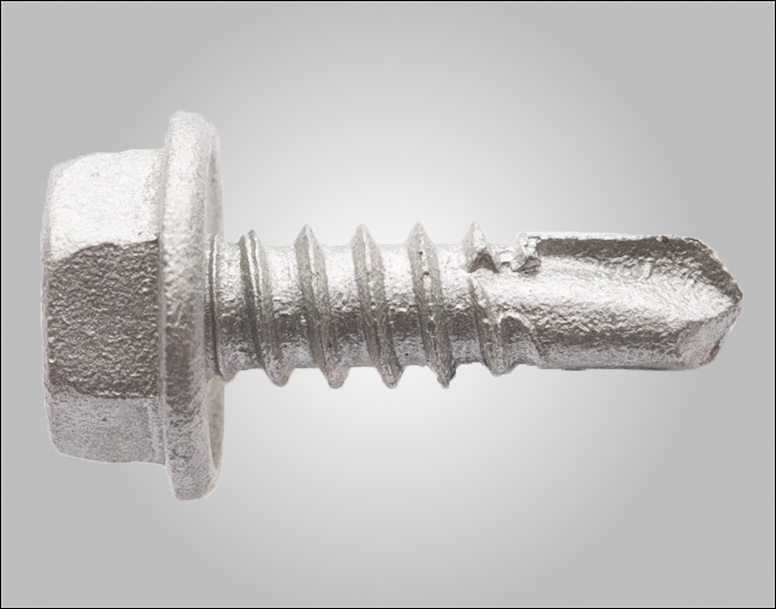

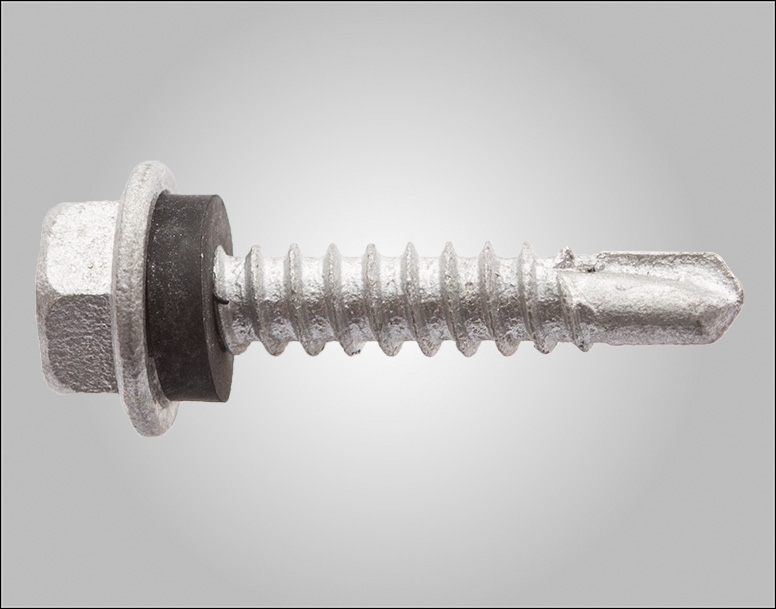

Metal Teks®

Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
1-310-9117-7TPC4 Metal Teks® 10 16 16mm Hex Head With Seal Climaseal® 4 Colormatch® 100 15 pdf31166-PDS
6-311-3151-1C4 Metal Teks® 10 16 16mm Hex Head No Seal Climaseal® 4 Colormatch® 1000 4 pdf31166-PDS
6-310-3117-5C4 Metal Teks® 10 16 16mm Hex Head With Seal Climaseal® 4 Colormatch® 1000 4 pdf31166-PDS
6-310-3398-8C4 Metal Teks® 10 16 25mm Hex Head With Seal Climaseal® 4 Colormatch® 1000 3 pdf31166-PDS
6-311-3398-1C4 Metal Teks® 10 16 25mm Hex Head No Seal Climaseal® 4 Colormatch® 1000 3 pdf31166-PDS
1-311-9097-3TPC4 (While stocks last) Metal Teks® 12 14 20mm Hex Head No Seal Climaseal® 4 Colormatch® 100 5 pdf31167-PDS
6-310-3070-8C4 Metal Teks® 12 14 20mm Hex Head With Seal Climaseal® 4 Colormatch® 500 4 pdf31167-PDS
6-311-3097-1C4 Metal Teks® 12 14 20mm Hex Head No Seal Climaseal® 4 Colormatch® 500 4 pdf31167-PDS
1-310-9070-7TPC4 (While stocks last) Metal Teks® 12 14 20mm Hex Head With Seal Climaseal® 4 Colormatch® 100 5 pdf31167-PDS
6-310-5755-5C5 (While stocks last) Metal Teks® 12 14 25mm Hex Head With Seal Climaseal® 5 Colormatch® 500 4 pdf31167-PDS
1-310-9323-4TPC4 (While stocks last) Metal Teks® 14 10 25mm Hex Head With Seal Climaseal® 4 Colormatch® 100 5 pdf31180-PDS
6-311-3323-1C4 Metal Teks® 14 10 25mm Hex Head No Seal Climaseal® 4 Colormatch® 500 3 pdf31180-PDS
6-311-5323-3C5 (While stocks last) Metal Teks® 14 10 25mm Hex Head No Seal Climaseal® 5 Colormatch® 500 3 pdf31180-PDS
6-310-5323-3C5 (While stocks last) Metal Teks® 14 10 25mm Hex Head With Seal Climaseal® 5 Colormatch® 500 3 pdf31180-PDS
6-310-3323-5C4 Metal Teks® 14 10 25mm Hex Head With Seal Climaseal® 4 Colormatch® 500 3 pdf31180-PDS
6-311-3038-5C4 Metal Teks® 14 20 22mm Hex Head No Seal Climaseal® 4 Colormatch® 500 3 pdf31293-PDS
6-310-3029-2C4 (While stocks last) Metal Teks® 14 20 22mm Hex Head With Seal Climaseal® 4 Colormatch® 500 3 pdf31293-PDS

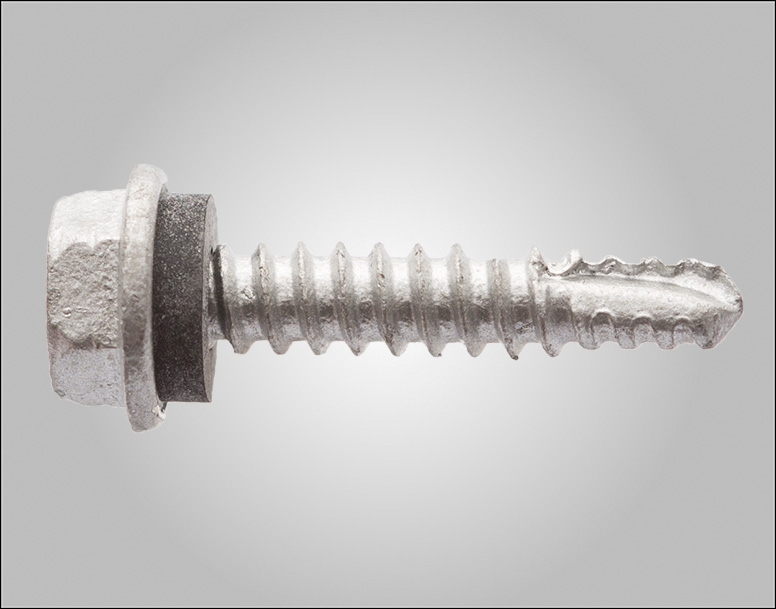

Buildex Designer Head Zips

Application

Buildex Designer Head ZIPS® have a low profile hex head that is ideal for use on cladding, where appearance is important. They are designed for valley fixing cladding profiles to steel purlins up to 3mm thick and timber battens.

Features and Benefits

  • Low profile hex head makes them ideal for use on cladding where appearance is important
  • High pull-out strength
  • Climaseal® 4 corrosion protection
  • Unique drill point that allows fastening to both timber and steel

PART NUMBERPRODUCTGAUGETHREADLENGTHHEAD TYPESEALFINISHAVAILABLE COLOURSPACK QTYCARTON QTYDATASHEET LINK
1-030-9326-6TPC4 (While stocks last) Designer Head Zip 10 16 25mm Hex Designer Head With Seal Climaseal® 4 Colormatch®* 100 5 pdf03223-PDS
6-030-3326-8C4 Designer Head Zip 10 16 25mm Hex Designer Head With Seal Climaseal® 4 Colormatch® 1000 3 pdf03223-PDS
6-031-3326-6C4 (While stocks last) Designer Head Zip 10 16 25mm Hex Designer Head No Seal Climaseal® 4 Colormatch® 1000 3 pdf03223-PDS

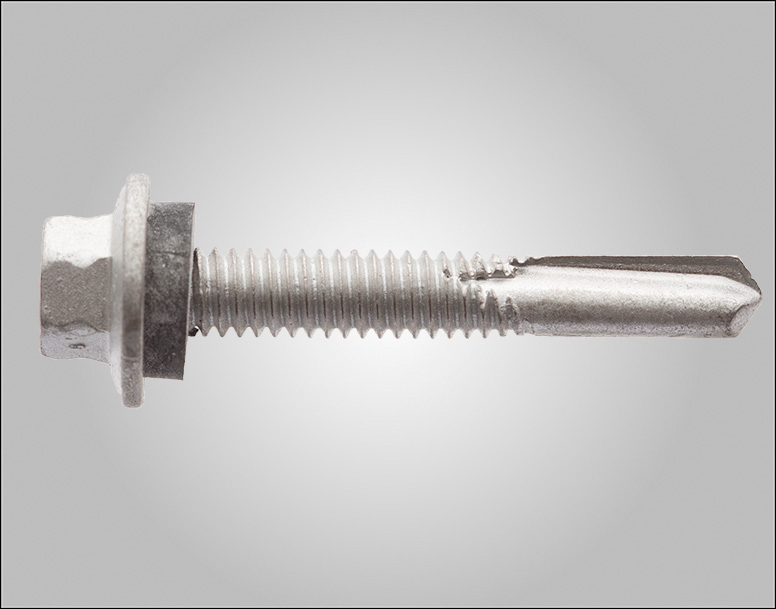

Metal Teks® Series 500

Application

The Buildex Range of Series 500 Teks® is designed for fixing metal to thick steel from 3mm up to 12mm hot rolled steel. A sealing washer is used for when a water tight finish is required for wall cladding, signs and plumbing fittings.

Features and Benefits

  • Fast and Easy application into steel with Teks® point for steel between steel
  • Climaseal® 3 corrosion protection


Metal Teks® 500 Series

Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishHi GripAvailable ColoursPack QtyCarton QtyDatasheet link
6-350-0009-4CS Metal Teks® - Series 500 12 24 38mm Hex Head With Seal Climaseal® 3   Colormatch® 500 3 pdf35003-PDS
6-350-0016-4CS Metal Teks® - Series 500 12 24 53mm Hex Head With Seal Climaseal® 3 ✔ Colormatch® 1000 1 pdf35005-PDS
6-350-0017-2CS Metal Teks® - Series 500 12 24 68mm Hex Head With Seal Climaseal® 3 ✔ Colormatch® 1000 1 pdf35005-PDS
